Home > Products > Electric Spindle > Grinding spindle > Internal grinding spindle > 100MD90Y2.5
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling

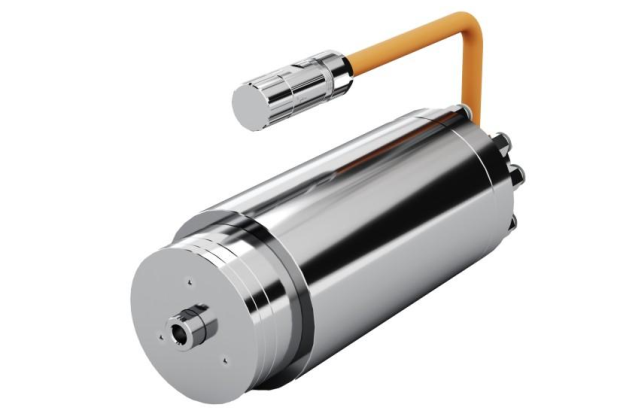

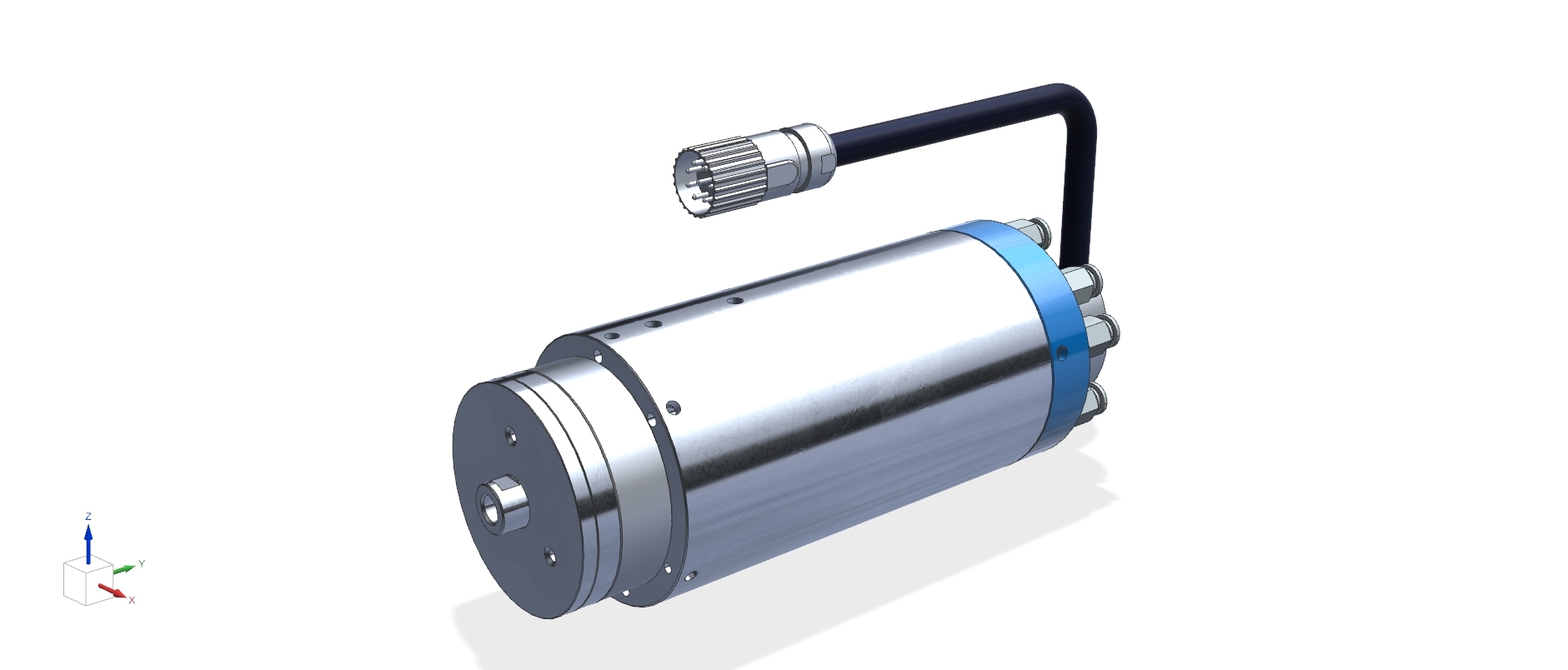

Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling

Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability,this type spindle's speed can be up to 90000RPM,with vibration 0.06mm/s;
Voltage
350V
Frequency
1500HZ
Rotation speed
90000RPM
Rated Power
S1:2.5KW S6:3KW
Cooling method
Water cooling
Currency
S1:7.5A S6:8A
GET A QUOTE
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling
  • Internal grinding spindle 100MD90Y2.5:Voltage,350V Frequency,1500HZ Rotation speed,90000RPM Rated Power,S1:2.5KW,S6:3KW Cooling method,Water cooling

Description

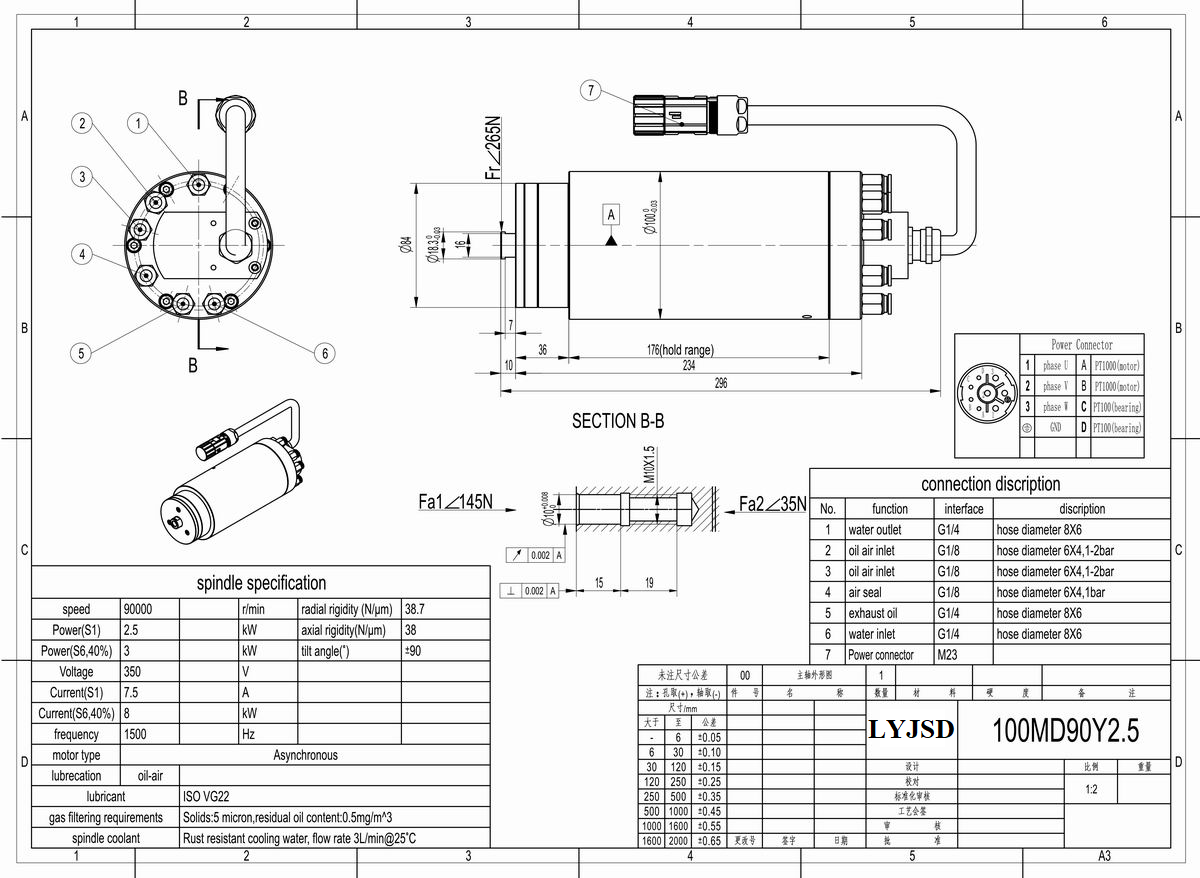

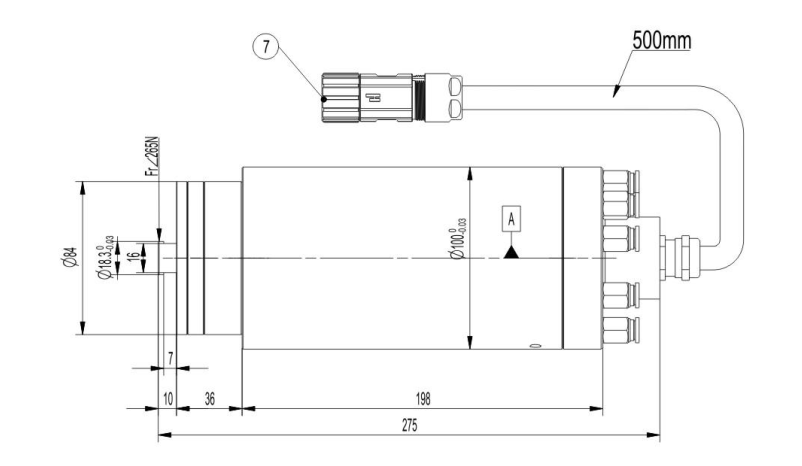

Please check the drawing to learn of more details of the type of spindle:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
