Home > Products > Electric Spindle > Grinding spindle > Internal grinding spindle > 150MD24Y16

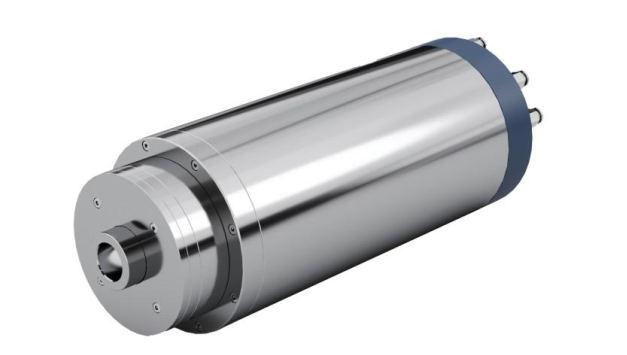

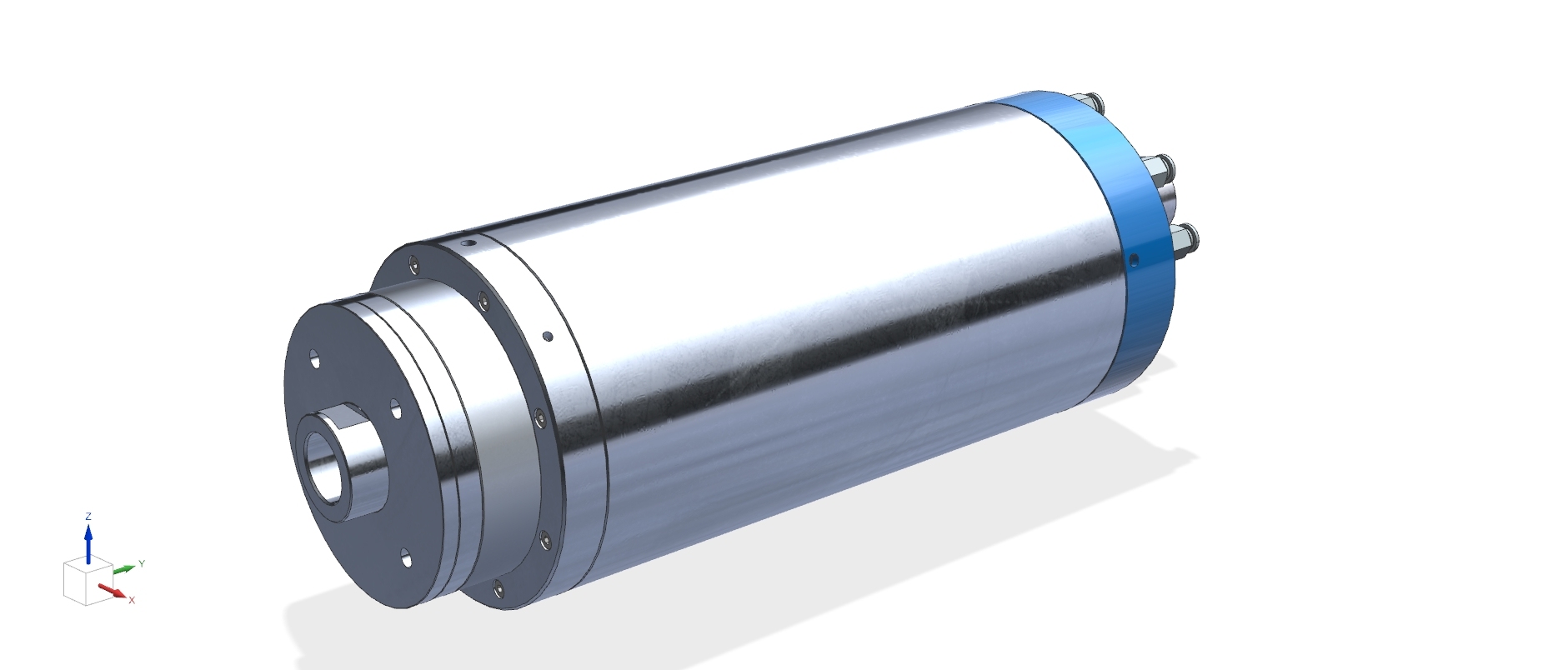

  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW
  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW
  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW
  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW

Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW

Our grinding electric spindle has the characteristics of high precision, high speed, low noise, low temperature rise and high reliability！
Voltage
350V
Frequency
800HZ
Rated Torque
S1:4.0NM S6:6.4NM
Rotation speed
24000RPM
Rated Power
S1:10KW S6:16KW
GET A QUOTE
  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW
  • Internal grinding spindle150MD24Y16:Voltage,350V Frequency,800HZ Rated Torque,S1:4.0NM,S6:6.4NM Rotation speed,24000RPM Rated Power,S1:10KW,S6:16KW

Description


Spindle Specifications

150MD24Y16

  • Maximum Speed: 24000 r/min
  • Rated Power (S1): 10 kW
  • Power (S6-60%): 16 kW
  • Rated Torque (S1): 4.0 Nm
  • Torque (S6-60%): 6.4 Nm
  • Rated Voltage: 350 V
  • Rated Frequency: 800 Hz
  • Rated Current: 23 A
  • Maximum Current: 38 A
  • Motor Type: 3-phase asynchronous motor
  • Motor Temperature Detection: Optional
  • Front Bearing: 2-B7009
  • Rear Bearing: 2-B7007
  • Dimensions (D): 150 mm
  • Dimensions (L): 320 mm
  • Dimensions (D1): 105 mm
  • Dimensions (L1): 30 mm
  • Dimensions (D2): 43 mm
  • Dimensions (L2): 18 mm
  • d (mm): 25 mm
  • Lh (mm): 42 mm
  • Thread Size (M): M25X2
  • Lubrication: Oil mist
  • Cooling Method: Water cooling
  • Power Connector: 5-pin connector, 1-3 pins for power
