Home > Products > Electric Spindle > Grinding spindle > External grinding spindle > External grinding spindle 155MD06G19
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water

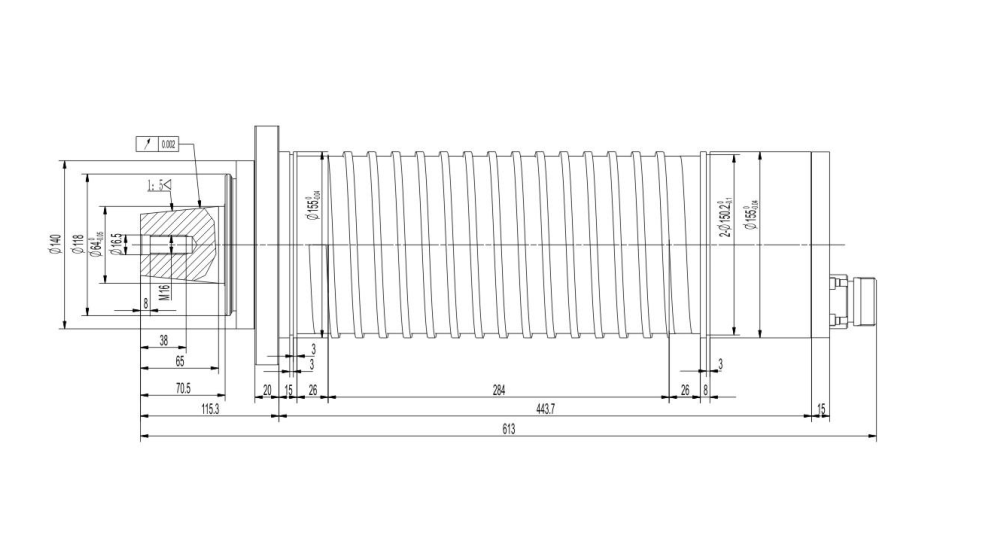

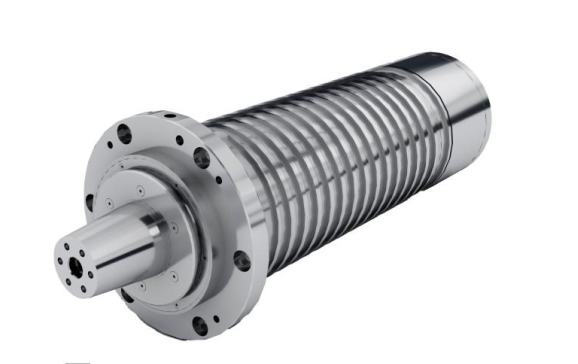

External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water

This type of spindle has a rotation speed of 6000RPM,Power of 24.7kW,Torque of 80.5Nm,can be used on External grinding machine tools with good stability.
Rotation seed
6000RPM
Power
24.7kW
Torque
80.5Nm
Voltage
380V
Frequency
300Hz
Current
49A
Lubrication
Grease
Cooling method
Water
GET A QUOTE
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water
  • External grinding spindle 155MD06G19:Rotation seed,6000RPM Power,24.7kW Torque,80.5Nm Voltage,380V Frequency,300Hz Current,49A Lubrication Grease Cooling method,Water

Description

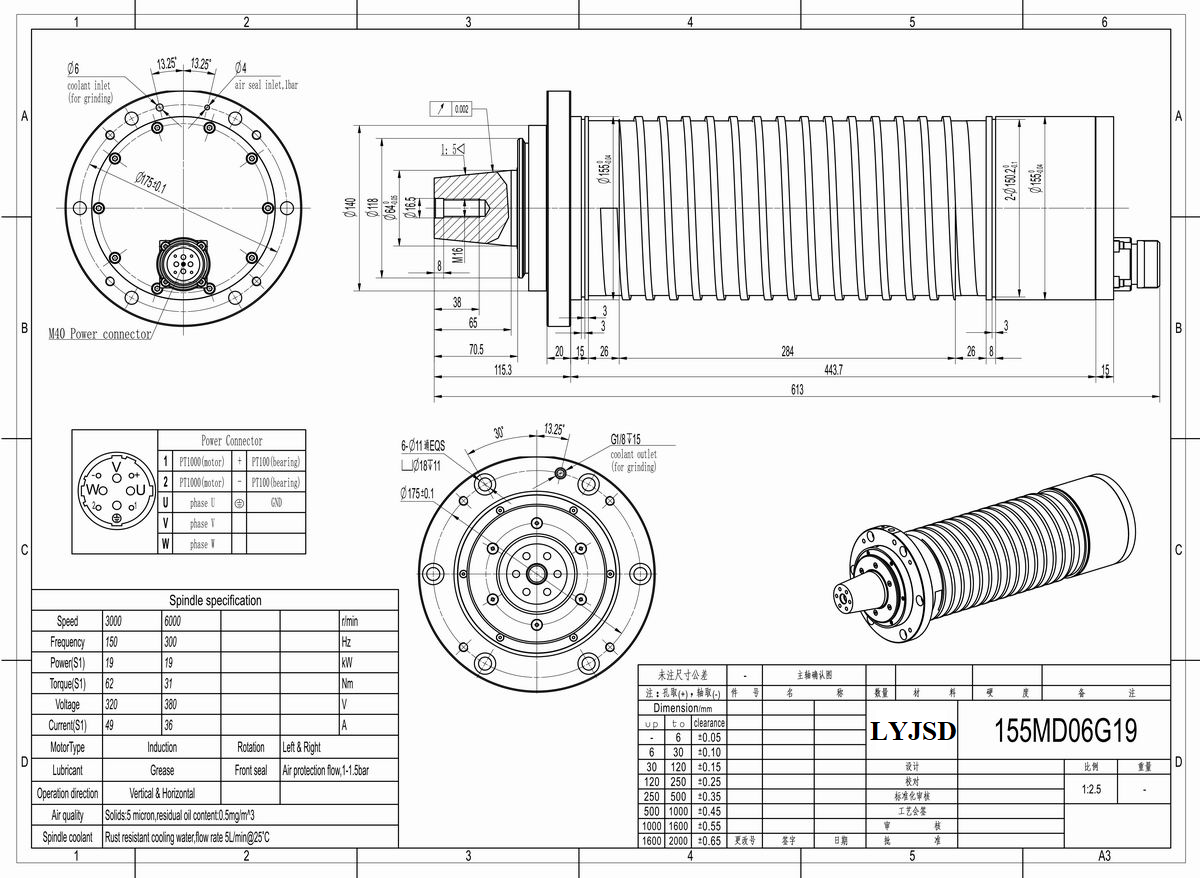

If you need more detailed parameters please find them as below:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
