Home > Products > Electric Spindle > Grinding spindle > External grinding spindle > External grinding spindle 170MD05G14B
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water

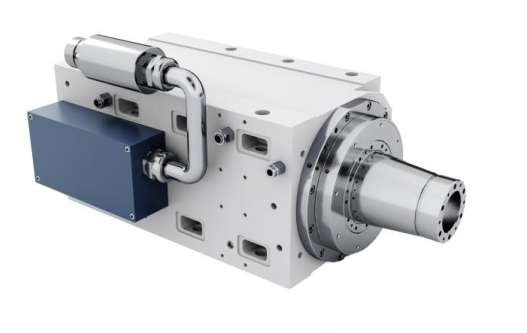

External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water

This type of spindle has a rotation speed of 5000RPM,Power of 18.2kW,Torque of 94Nm,can be used on External grinding machine tools with good stability.
Rotation seed
5000RPM
Power
18.2Kw
Torque
94Nm
Voltage
380V
Frequency
333.3Hz
Current
53A
Lubrication
Grease
Cooling method
Water
GET A QUOTE
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water
  • External grinding spindle 170MD05G14B:Rotation seed,5000RPM Power,18.2Kw Torque,94Nm Voltage,380V Frequency,333.3Hz Current,53A Lubrication Grease Cooling method Water

Description

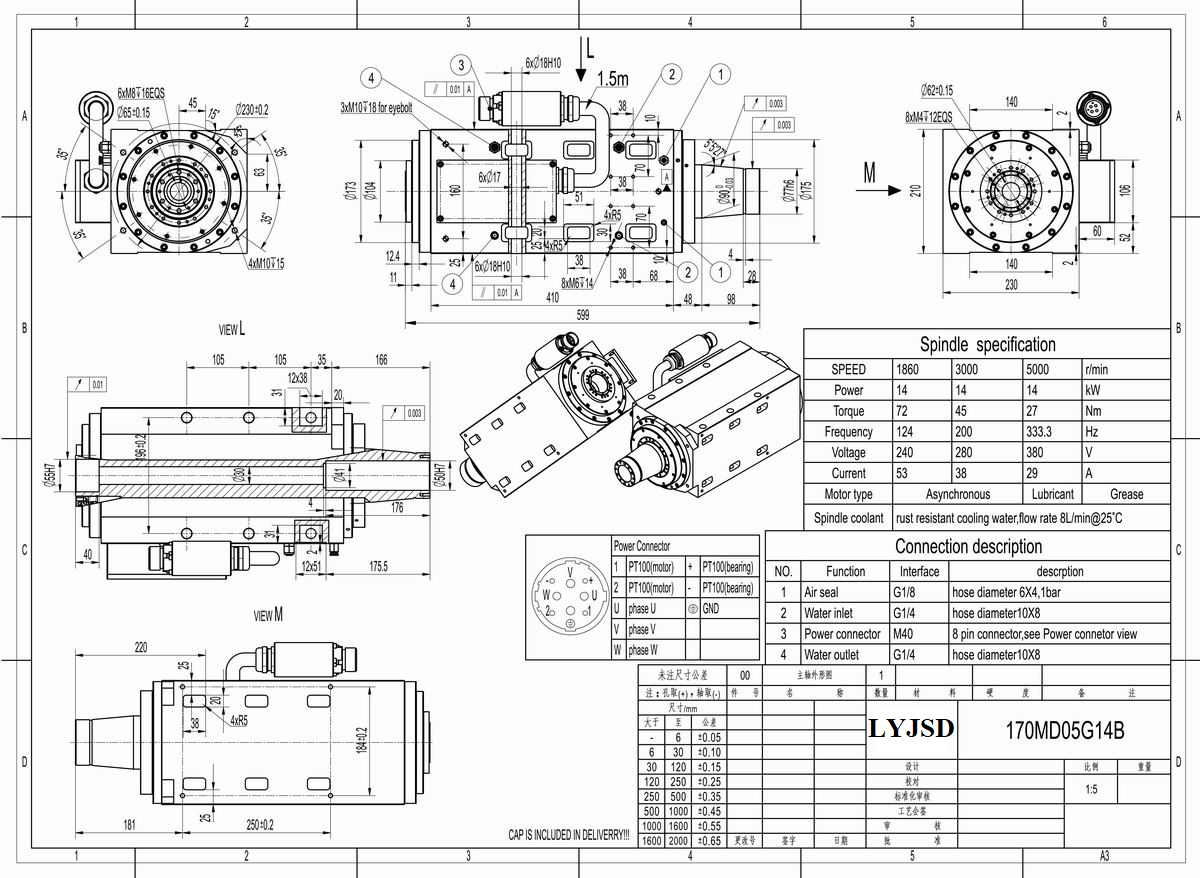

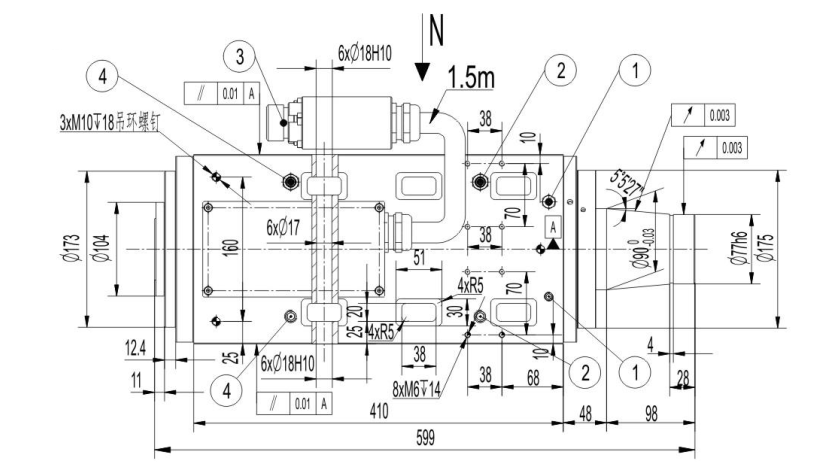

If you need more detailed parameters please find them as below:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
