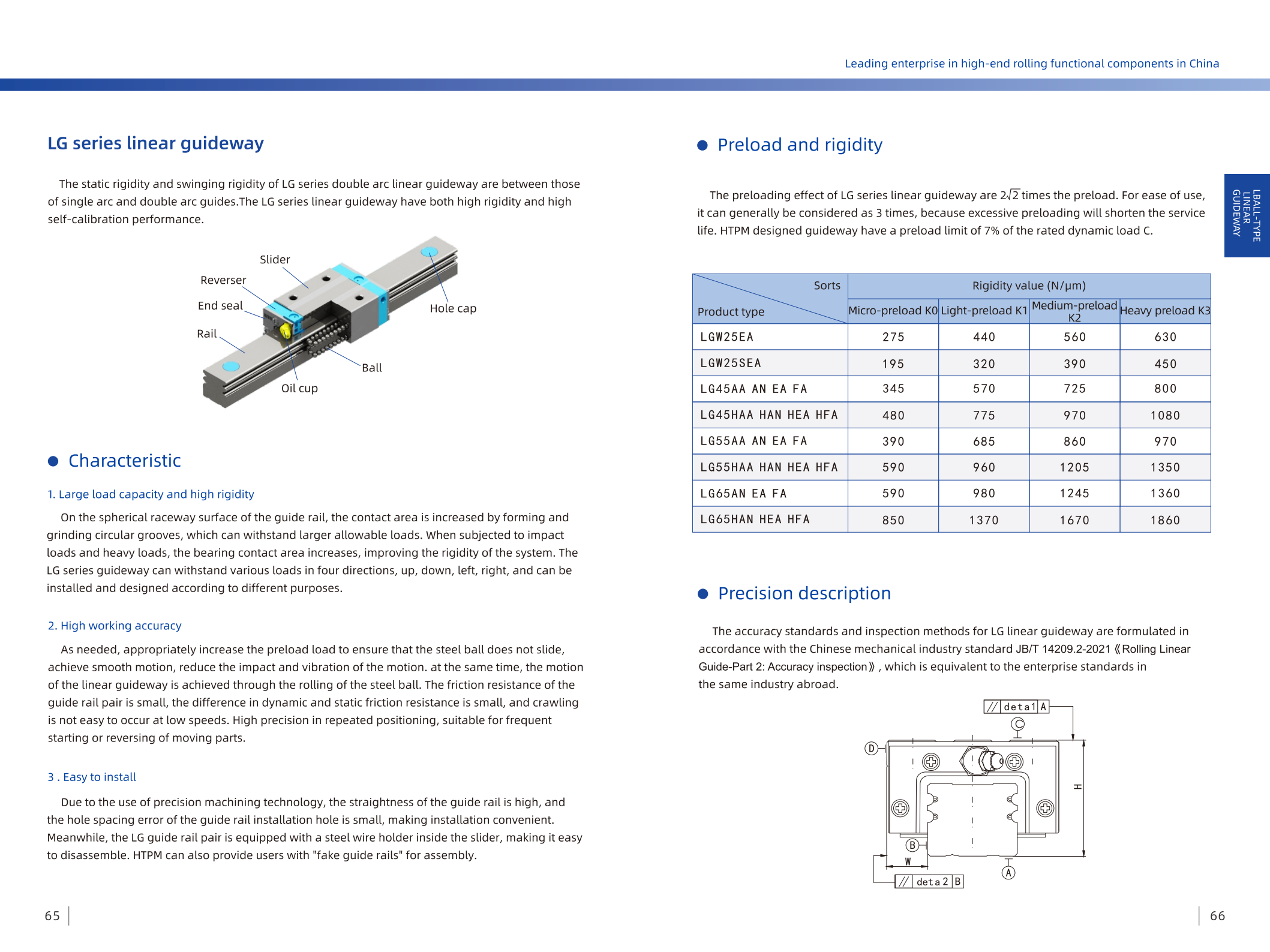

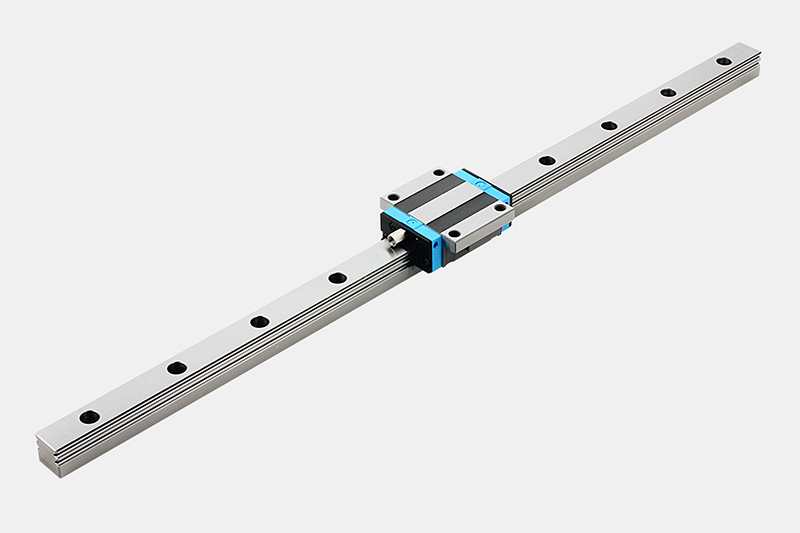

Features: 1. High load-carrying capacity and high rigidity On the spherical raceway surface of the guideway, arc-shaped grooves are formed by grinding, which increases the contact area and can withstand a larger allowable load. When subjected to impact loads and heavy loads, the contact area for load-bearing increases, enhancing the rigidity of the system. The LG type guide rail pair can withstand loads in all four directions: up, down, left, and right, and can be installed and designed for different purposes. 2. High working accuracy According to requirements, the preload can be appropriately increased to ensure that the steel balls do not slide, achieving smooth movement, reducing the impact and vibration of the movement. Meanwhile, the movement of the rolling linear guide pair is realized through the rolling of the steel balls, with small frictional resistance of the guide pair and a small difference between dynamic and static frictional resistance, making it less likely to cause crawling at low speeds. It has high repeat positioning accuracy and is suitable for motion components that frequently start or change direction. 3. Easy Installation Due to the adoption of precise processing technology, the straightness of the guide rail is high, and the hole distance error of the guide rail installation holes is small, making installation convenient. Meanwhile, the LG guide rail pair is equipped with a wire cage inside the slider, which facilitates disassembly and assembly. Kaitai Precision Machinery can also provide users with "dummy guide rails" for assembly. Applications: Machining centers, CNC machine tools, CNC lathes, surface grinding machines, coordinate grinding machines, industrial robots, electrical discharge machining machines, welding machines, material supply devices, packaging machinery.
