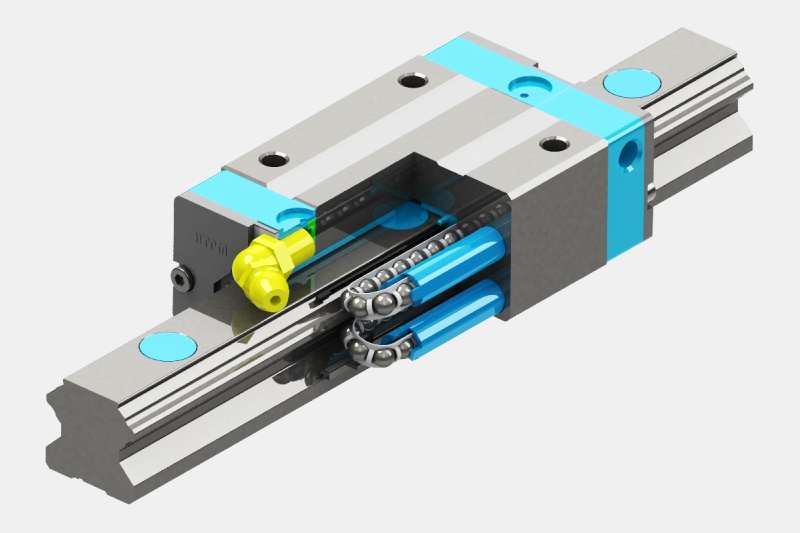

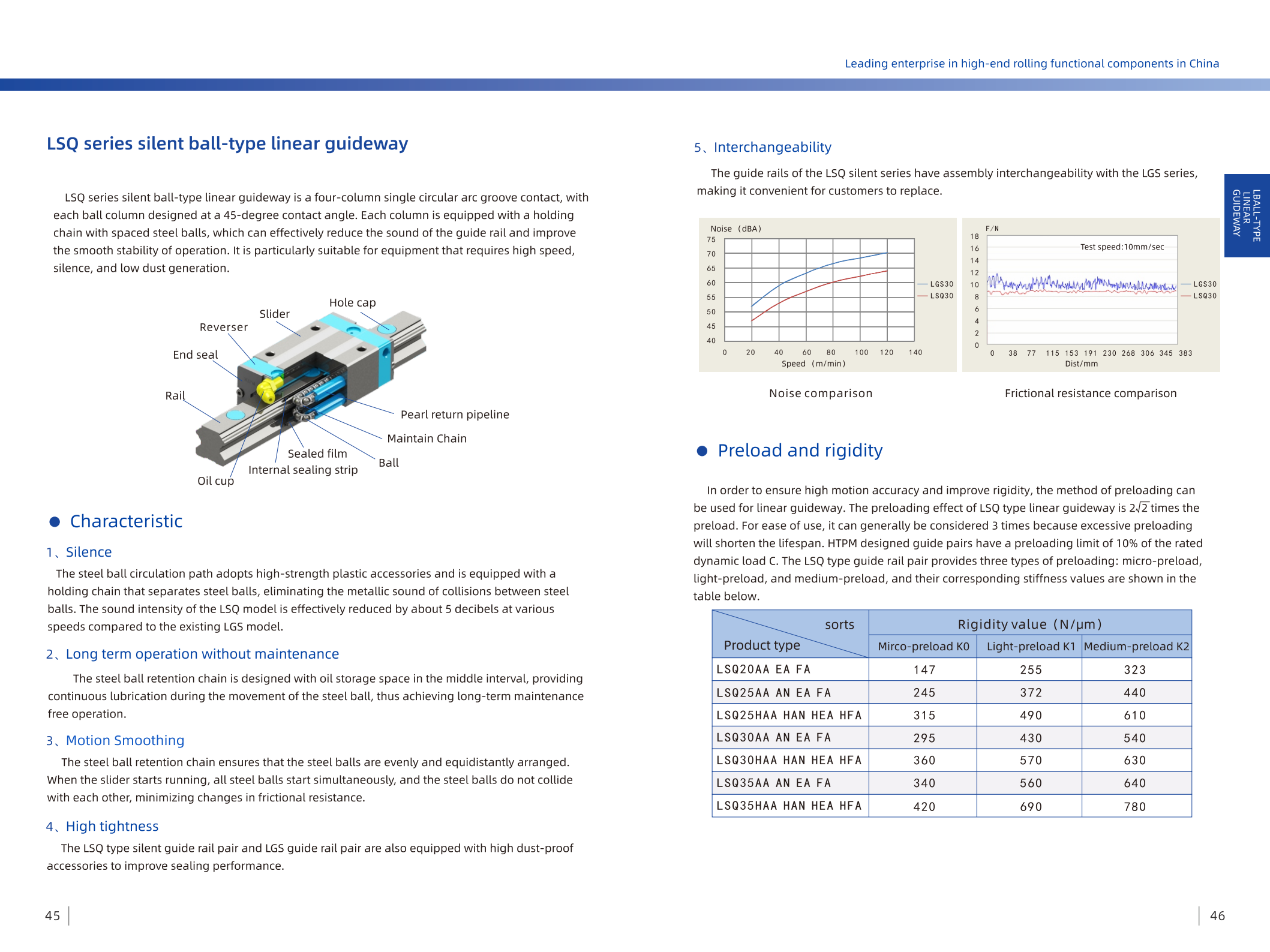

Features: 1. Silence The steel ball circulation path uses high-strength plastic components and is equipped with a retaining chain to separate the steel balls, eliminating the metallic sound caused by the collision between steel balls. The sound intensity of the LSQ type is effectively reduced by approximately 5 decibels at all speeds compared to the existing LGS type. 2. Long-term operation without maintenance The steel ball retaining chain is designed with an oil storage space at the middle intervals, ensuring continuous lubrication for the steel balls during movement, thus achieving long-term operation without maintenance. 3. Smooth Movement The steel ball retaining chain ensures that the steel balls are evenly and equidistantly arranged. When the slider starts to move, all the steel balls start simultaneously and do not collide with each other, minimizing the variation in frictional resistance to the greatest extent. 4. High Sealing Performance The LSQ silent linear guide pair is equipped with high dust-proof accessories just like the LGS linear guide pair, enhancing the sealing performance. 5. Interchangeability The guide rails of the LSQ silent series are interchangeable with those of the LGS series in assembly, facilitating replacement for customers. Applications: Material supply device, Electrical discharge machining machine tool, Optical mechanical measuring table, CNC lathe, Industrial robot, Semiconductor manufacturing equipment, Packaging machinery.
