Home > Products > Electric Spindle > Grinding spindle > Vertical grinding spindle > Vertical grinding spindle 170XDJ12G40/HC80
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water

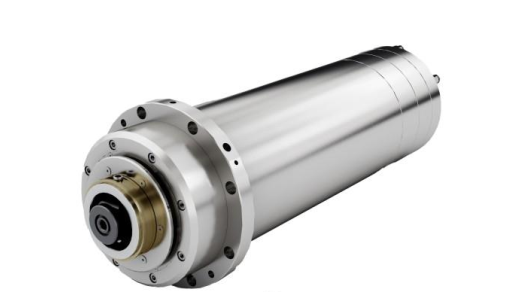

Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water

This type of spindle has a rotation speed of 12000RPM,Power of 40kW,Torque of 54.7Nm,can be used on Vertical grinding machine tools with good stability.
Rotation seed
12000RPM
Power
40Kw
Torque
54.7Nm
Voltage
380V
Frequency
600Hz
Current
72A
Lubrication
Grease
Cooling method
Water
GET A QUOTE
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water
  • Vertical grinding spindle 170XDJ12G40/HC80:Rotation seed,12000RPM Power,40Kw Torque,54.7Nm Voltage,380V Frequency,600Hz Current,72A Lubrication Grease Cooling method Water

Description

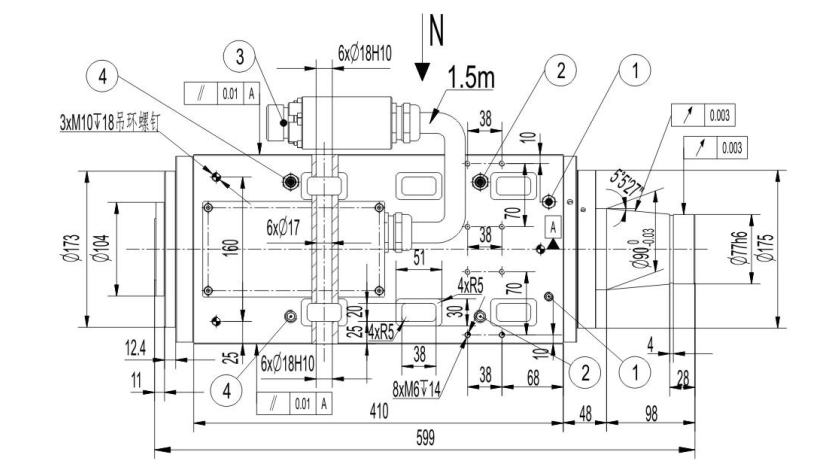

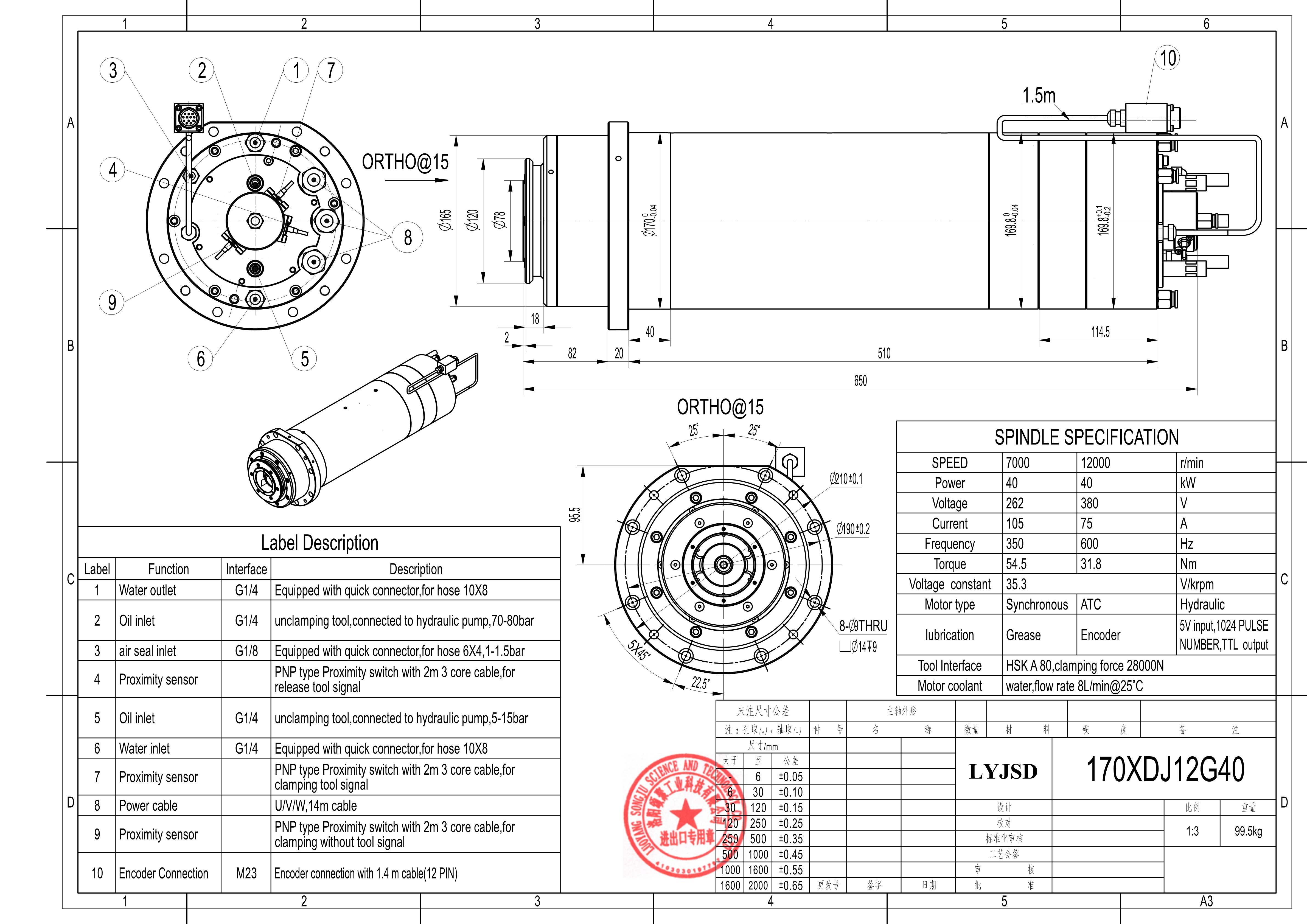

If you need more detailed parameters please find them as below:

Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
