Luoyang Songju is pleased to announce the successful shipment of a paralled surface grinding machine to our valued customer. This precision grinding solution is engineered for high-accuracy parallel face grinding of bearing components and industrial round parts.
Machine Обзор

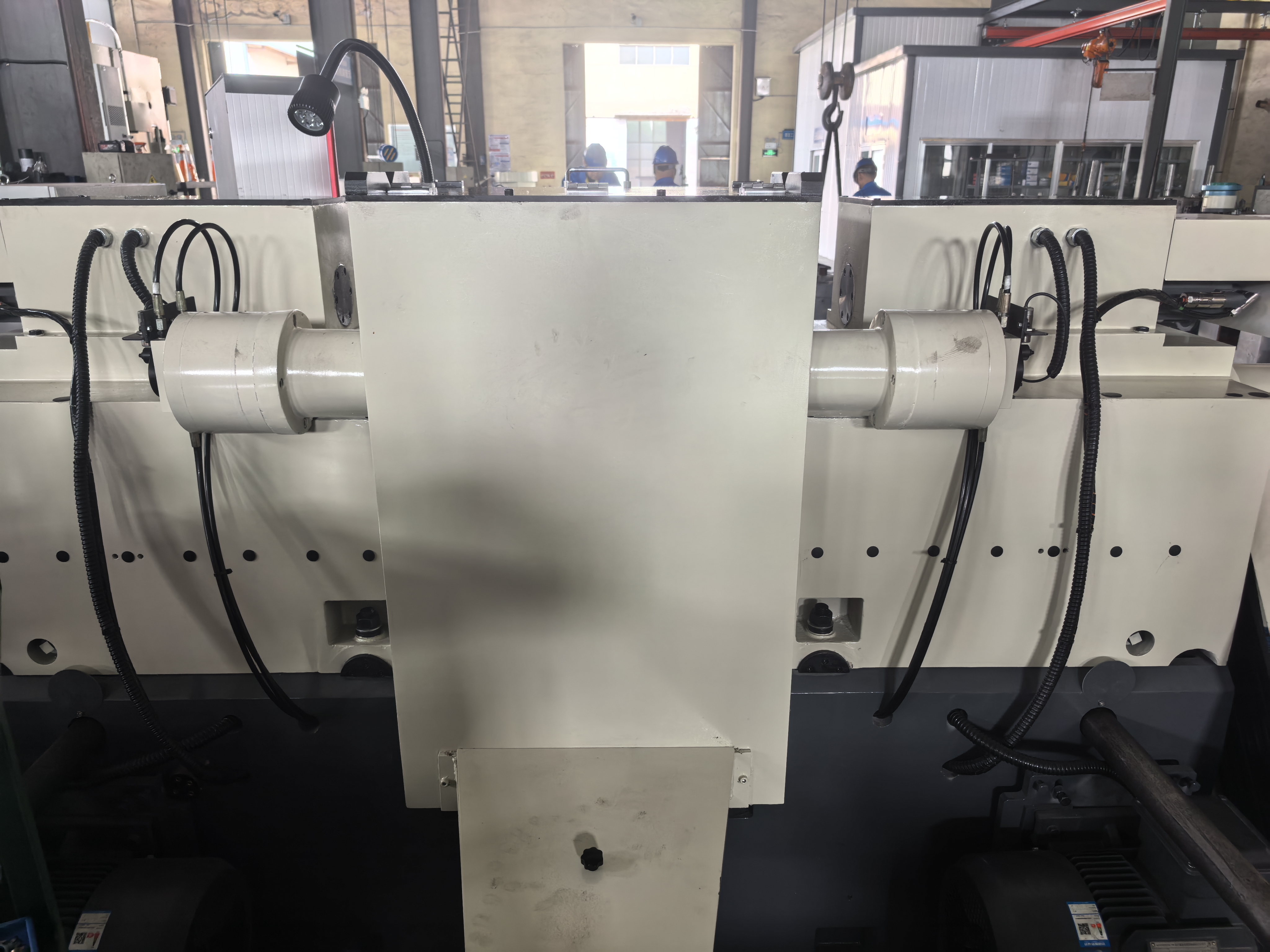

The paralled surface grinding machine is a specialized piece of equipment designed for grinding two parallel end faces simultaneously. It is primarily used in the bearing manufacturing industry for processing the inner and наружное кольцоs of small and medium-sized bearings. Beyond bearing applications, the machine excels at grinding piston rings, valve seats, valve plates, and various other round components that require precise parallel end faces.
This machine leverages a dual-face grinding principle that гарантирует both end faces are ground simultaneously under identical conditions. This simultaneous processing guarantees exceptional parallelism and uniform thickness across the entire workpiece — a critical quality requirement for high-performance bearing assemblies.
Технические характеристики
The machine обеспечивает outstanding precision across all workpiece sizes. Below are the key performance specifications verified during factory acceptance testing prior to shipment:
| Параметр | Workpiece Diameter | Specification |
|---|---|---|
| Параллельность | ≤ 50 mm | 0.002 mm |
| Параллельность | 50 – 100 mm | 0.004 mm |
| Параллельность | 100 – 180 mm | 0.006 mm |
| Thickness Error | All sizes | 0.02 mm |
| Шероховатость поверхности | All sizes | Ra 0.32 |
Гарантия качества
All specifications were validated through rigorous factory acceptance testing prior to shipment. Each machine undergoes a comprehensive inspection protocol including parallelism measurement, thickness uniformity verification, and surface finish analysis using calibrated metrology equipment traceable to national standards.
Применения
This paralled surface grinding machine is ideally suited for manufacturers producing:
- Bearing rings — inner and наружное кольцо end face grinding for small and medium-sized bearings
- Piston rings — achieving precise parallelism required for combustion sealing
- Valve seats — ensuring flat, parallel mating surfaces for leak-free operation
- Valve plates — высокоточный grinding for compressor and pump components
- General round parts — any circular component requiring parallel end faces with tight tolerances
Shipment & Delivery

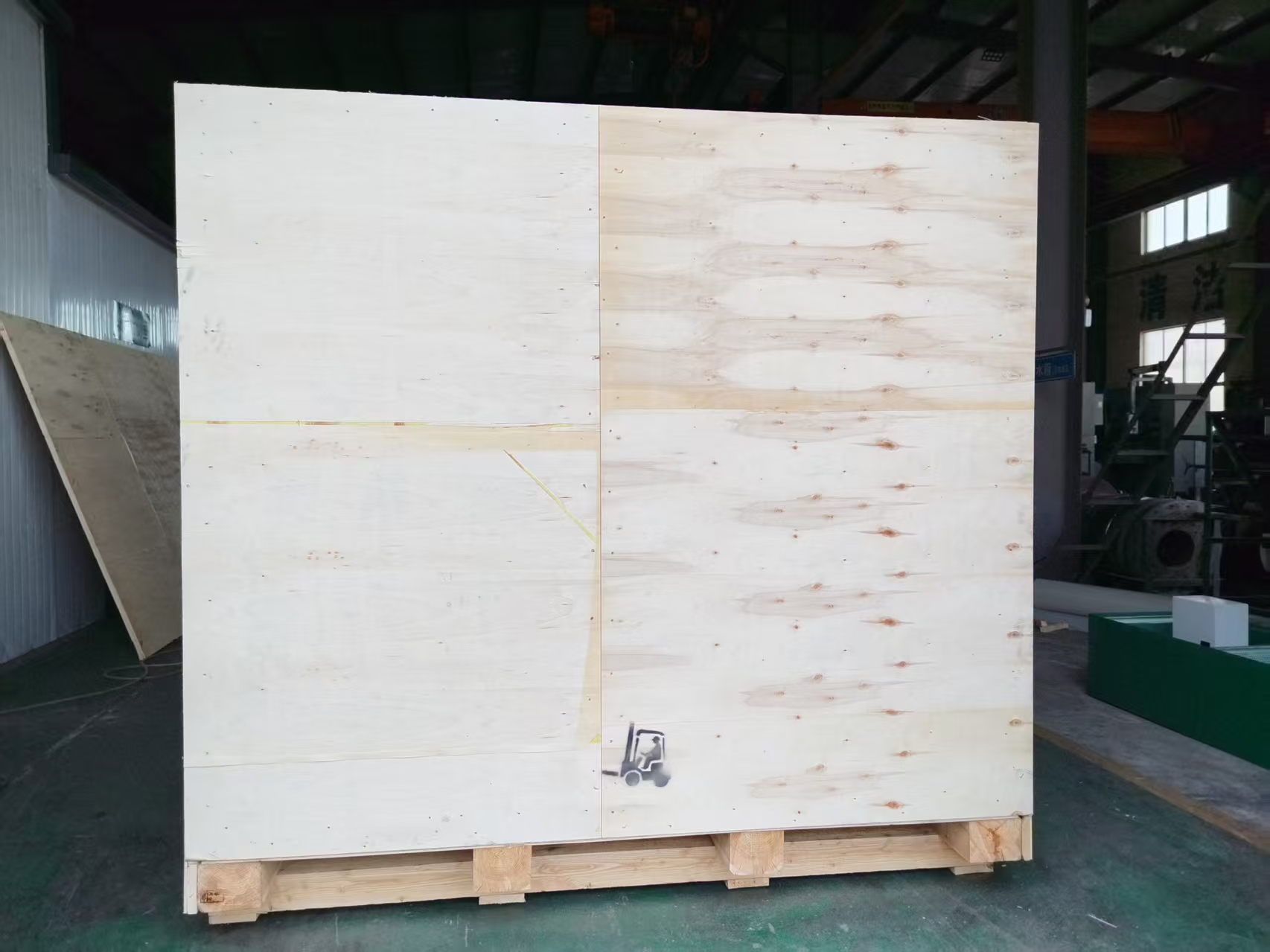

The machine has been carefully packaged with moisture-proof protection, securely fastened to a reinforced pallet, and dispatched via our trusted logistics partners. Full shipping documentation, installation manuals, and operation guides accompany the shipment to ensure smooth installation and commissioning at the customer's facility.
As with all Luoyang Songju equipment, this machine is backed by our comprehensive after-sales support, including remote technical assistance and on-site commissioning services as required.
