Heavy-Duty Grinding Spindle
190XDJ08G52.5 HC100
Ultra-powerful HC100 flange spindle with 500mm wheel capacity. 52.5 kW power, 62.7 Nm torque for the most demanding heavy grinding operations -- large bearing races, heavy cylindrical grinding, and industrial-scale material removal.

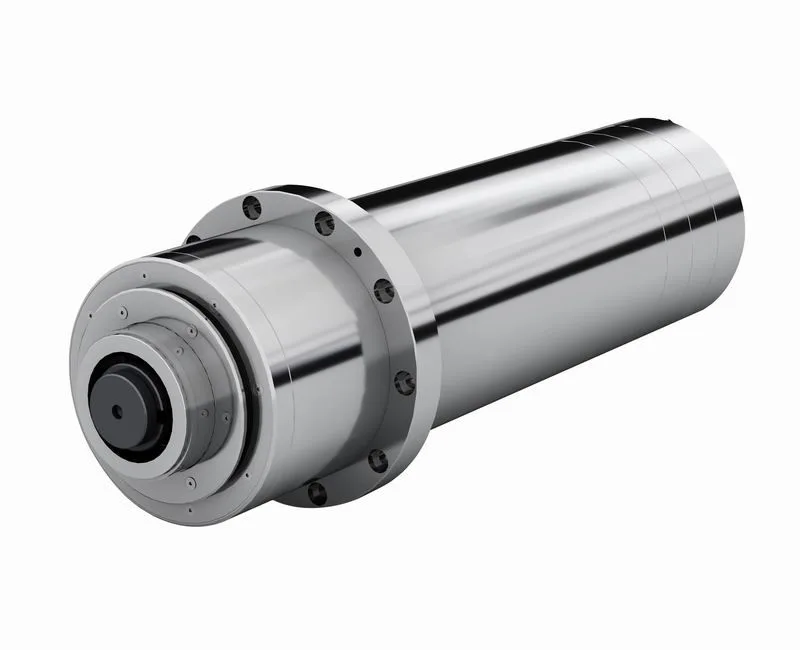

190XDJ08G52.5 HC100 Heavy-Duty Grinding Spindle
The 190XDJ08G52.5 HC100 is our most powerful heavy-duty grinding spindle, purpose-built for the most demanding industrial grinding applications. With an extraordinary 52.5 kW of continuous power at 8,000 r/min and a massive 62.7 Nm of torque, this spindle delivers unprecedented material removal capability for heavy grinding operations, large bearing race grinding, and heavy cylindrical grinding where maximum power and rigidity are non-negotiable.
Equipped with a heavy-duty HC100 large grinding wheel flange interface and P4/P2 hybrid angular contact ball bearings in a tandem-O configuration optimized for extreme grinding forces, the 190XDJ08G52.5 HC100 achieves runout accuracy of 0.001mm or less even under the most demanding cutting loads. The advanced oil-air micro-lubrication system ensures reliable bearing performance across the complete operating range. The high-capacity spiral water-cooling jacket maintains stable thermal conditions during extended heavy grinding cycles. With a maximum grinding wheel diameter of 500mm and a massive 190mm housing, this spindle is the ultimate solution for the heaviest industrial grinding tasks. Dynamically balanced to G0.4 per ISO 1940-1 and rated IP54, the ~220 kg weight provides maximum rigidity and vibration damping for industrial-scale grinding operations.
Download Drawing Get a QuoteDetailed Parameters
| Speed (r/min) | 8000 |
| Power (kW) | 52.5 |
| Torque (Nm) | 62.7 |
| Motor Type | Synchronous Motor |
| Tool Interface | HC100 (large grinding wheel flange) |
| Bearing Type | P4/P2 Angular Contact Ball Bearings |
| Bearing Arrangement | Tandem-O pair for extreme grinding rigidity |
| Runout Accuracy | ≤ 0.001mm at grinding wheel arbor |
| Cooling Method | Water-jacket cooling with external chiller |
| Lubrication | Oil-air micro-lubrication |
| Housing Diameter | 190mm |
| Housing Material | Alloy Steel (42CrMo4) |
| Spindle Weight | ~220 kg |
| Grinding Wheel Max Diameter | 500mm |
| Spindle Nose | HC100 large grinding wheel flange interface |
| Maximum Speed Factor (dmn) | 1.52 × 10⁶ mm·r/min |
| Noise Level | ≤ 75 dB(A) at max speed |
| Balancing Grade | G0.4 per ISO 1940-1 |
| Protection Class | IP54 |
| Sensor Integration | Built-in temperature sensor (PT100) |
| Mounting Orientation | Horizontal |
| Application | Heavy grinding operations / large bearing race grinding / heavy cylindrical grinding |
Available Options & Customizations
- Hybrid ceramic bearings (Si₃N₄ balls) for extreme loads
- Enhanced cooling system for continuous heavy-duty operation
- Custom flange interfaces for specialized grinding wheels
- Built-in multi-axis vibration monitoring
- Rotary encoder for C-axis positioning
- Increased IP65 protection for wet grinding
Industrial-Grade Heavy Grinding Power
The 190XDJ08G52.5 HC100 delivers unmatched power, torque, and rigidity for the most demanding large-scale industrial grinding applications.
52.5 kW Maximum Power
Industry-leading 52.5 kW continuous power rating delivers unmatched material removal capability for the heaviest grinding operations.
62.7 Nm Massive Torque
Extraordinary torque output for heavy cylindrical grinding and large bearing race machining where conventional spindles fall short.
HC100 Heavy-Duty Flange Interface
Massive HC100 grinding wheel flange interface provides rock-solid tool clamping for the largest grinding wheels at maximum cutting loads.
P4/P2 Hybrid Bearing System
Combined P4 and P2 precision angular contact bearings handle extreme radial and axial grinding forces with sub-micron accuracy.
Advanced Oil-Air Lubrication
Precision oil-air delivery system ensures reliable bearing performance under the most demanding heavy-duty grinding conditions.
High-Capacity Water Cooling
Enhanced spiral water jacket handles the thermal load from 52.5 kW continuous operation, ensuring stable accuracy during long cycles.
G0.4 Precision Balancing
Dynamically balanced to G0.4 grade for ultra-low vibration, critical for heavy grinding with large 500mm wheels.
Built-in Temperature Monitoring
PT100 sensor with multi-point monitoring provides comprehensive thermal data for industrial-grade process control.
