What Is a High Speed Drive Motor?
High speed drive motors are specialized permanent magnet synchronous or asynchronous motors designed to power the most demanding industrial spindle drive applications. Unlike integrated electrospindles where the motor is built into the spindle shaft, these are standalone drive motors that provide rotational power to a separate spindle unit — offering greater flexibility in system design and the ability to drive multiple spindle configurations.

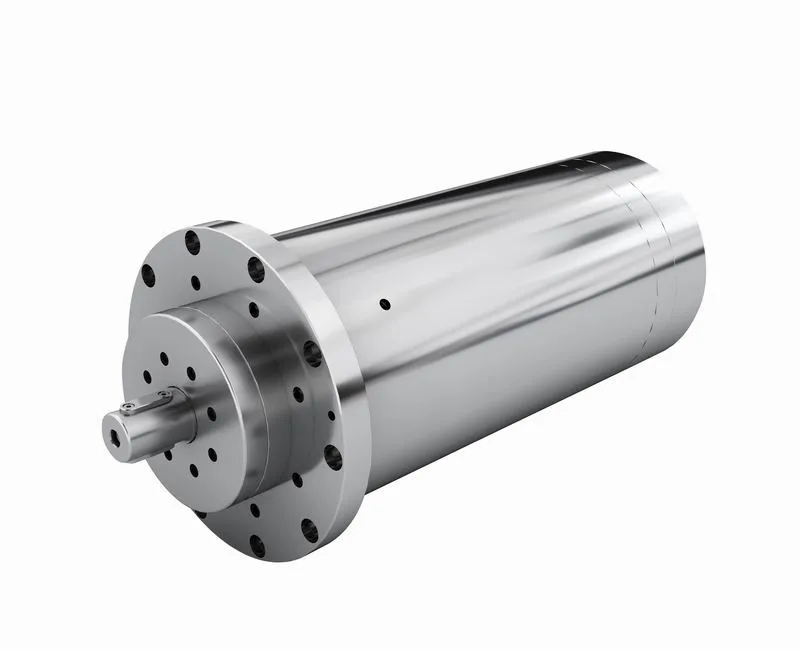

Luoyang Songju offers two high-power drive motor models: the 170TD50Y80 (80kW PMSM, 50,000 RPM) with ceramic hybrid bearings and dual water+oil-air cooling for extreme-speed applications, and the 210TD25Q100 (100kW asynchronous, 25,000 RPM) for heavy-duty belt-drive machining centers. Both motors feature G0.4 dynamic balancing, comprehensive sensor suites, and are backed by our ISO 9001:2015 certified quality system.
96% Efficiency
IE4 equivalent, minimal waste heat
G0.4 Balanced
Ultra-low vibration at max speed
Dual Cooling
Water jacket + oil-air bearing cooling
ISO 9001:2015
Certified quality management
High Speed
Motors
2 Models | 80–100kW | Synchronous & Asynchronous
High-power spindle drive motors for heavy-duty CNC machining applications. Available in synchronous (servo) and asynchronous configurations — delivering the precise speed control or maximum power density your application demands.
High-Power Spindle Drive Motors for Heavy-Duty Machining
Luoyang Songju high speed motors provide the muscle behind the most demanding machining operations. The 170TD50Y80 (80kW) and 210TD25Q100 (100kW) represent the top tier of spindle drive power — engineered for heavy roughing, deep drilling, and high-MRR (material removal rate) applications in large machining centers and boring mills.
Synchronous motor variants offer closed-loop speed and position control — essential for rigid tapping, tool orientation, and C-axis positioning. Asynchronous variants deliver maximum power density for continuous heavy cutting where precise angular positioning is not required.
Both models feature liquid cooling, precision-balanced rotors, and integrated temperature sensors. Complete drive packages including compatible VFD/amplifier recommendations and integration support are available. Every motor ships with a factory test certificate documenting power curve, efficiency, and thermal performance data.
Request QuoteHigh Speed Motor — 2 Models
High-power spindle drive motors for heavy-duty CNC machining applications. Available in synchronous (PMSM) and asynchronous configurations — delivering precise speed control or maximum power density depending on your application requirements. Both models feature liquid cooling, precision-balanced rotors to G0.4, and integrated temperature sensors for reliable continuous operation.
The 170TD50Y80 uses ceramic hybrid bearings (Si3N4) with water+oil-air dual cooling for extreme 50,000 RPM operation. The 210TD25Q100 provides belt-drive flexibility with massive 100kW output for large-scale machining centers and boring mills.
How to Select a High Speed Drive Motor
Key parameters for matching a drive motor to your application requirements
Power Requirements (kW) — Size for Peak Demand
Calculate the peak power demand of your driven load plus a 15–20% safety margin. Our 170TD50Y80 delivers 80kW continuous — suitable for large VMC/HMC spindle drives, compressor drives, and test rigs. Our 210TD25Q100 delivers 100kW continuous with higher torque at lower speeds — ideal for heavy boring mills and large-scale machining centers. Oversizing by more than 30% wastes energy and increases cooling system cost; undersizing risks thermal overload and reduced service life.
Speed Range — Match Operating Envelope
170TD50Y80: 10,000–50,000 RPM operating range with constant torque from 10,000–30,000 RPM. Best for high-speed spindle drives requiring a wide speed range. 210TD25Q100: Up to 25,000 RPM with higher torque density at lower speeds. Best for heavy-duty applications where massive torque at moderate speed is prioritized over maximum RPM. Verify your application's speed-torque curve against the motor's capability envelope before selection.
Motor Control — Drive and Feedback Requirements
Both models are permanent magnet synchronous motors (PMSM) requiring a compatible servo drive with encoder feedback. The 170TD50Y80 operates at up to 833Hz fundamental frequency — ensure your drive is rated for this frequency range. Closed-loop vector control with high-resolution encoder feedback (typically 2,048+ PPR sine/cosine) is recommended for precise speed regulation. Contact us for compatible drive recommendations and integration support. We can supply complete motor + drive packages tested as a system.
Cooling Infrastructure — Plan for Thermal Management
At 80–100kW output with 96% efficiency, these motors generate 3.2–4kW of waste heat at full load. The integrated water-jacket requires an external chiller with minimum cooling capacity of 5kW and flow rate of 8–12 L/min. The oil-air bearing cooling circuit requires a separate clean, dry compressed air supply at 5–6 bar with oil mist separator. Budget for chiller, air preparation, and coolant piping in your installation plan. Inadequate cooling is the #1 cause of premature high-speed motor failure.
Mechanical Integration — Mounting and Coupling
Both models feature precision flange mounting with pilot diameter for accurate alignment. 170TD50Y80: 170mm housing diameter, ~280 kg, flange mount. 210TD25Q100: belt-drive output configuration for flexible speed ratio adaptation. Shaft coupling must be rated for the motor's maximum speed and torque with appropriate safety factor. We recommend flexible disc couplings or high-speed gear couplings to accommodate minor misalignment while maintaining torsional stiffness. 3D STEP models and 2D installation drawings provided with quotation.
Industries & Use Cases
High speed drive motors power the most demanding industrial applications where extreme speed and power density are critical
High-Speed Electrospindle Drives
Primary motor for advanced CNC electrospindle drive systems requiring extreme rotational speeds and precise speed control. The 170TD50Y80 at 50,000 RPM enables micro-machining and high-speed finishing with small-diameter tooling.
Large-Scale Machining Centers
The 210TD25Q100 delivers 100kW for heavy boring mills, large VMCs, and gantry machining centers. Belt-drive configuration provides flexible speed ratio adaptation for diverse cutting conditions across large workpieces.
Turbo-Machinery & Compressors
Direct-drive motors for centrifugal and axial compressors, micro-turbines, and high-speed blowers in refrigeration, air separation, and gas processing industries. 96% efficiency minimizes energy costs in continuous-duty applications.
R&D Test Stands & Laboratories
Versatile high-speed drive for university and corporate research laboratories developing next-generation rotating machinery. Used in material fatigue testing, tribology research, and component endurance validation at extreme velocities.
Aerospace Component Manufacturing
High-power spindle drives for machining titanium and nickel alloy aerospace structural components. The combination of high torque at low RPM and precise speed regulation enables aggressive material removal while maintaining tight tolerances.
Specialized Manufacturing Equipment
Custom high-speed manufacturing equipment for specialized processes in precision engineering, medical device production, and advanced materials processing. Complete motor + drive packages available with full integration support and CAD data.
High Speed Motor FAQ
What are the advantages of permanent magnet synchronous motors?
PMSM technology offers: (1) 94–96% efficiency vs 88–92% for induction motors — lower energy cost and less waste heat, (2) Higher power density — more kW per kg of motor weight, (3) Precise speed control — rotor speed exactly matches stator field frequency, essential for synchronized multi-axis applications, (4) Constant torque across a wide speed range, (5) Compact size for given power output. The trade-off is higher initial cost and the requirement for a more sophisticated servo drive. For high-performance spindle drives where speed precision and efficiency matter, PMSM is the superior choice.
Why ceramic hybrid bearings for high-speed motors?
At 50,000 RPM, the centrifugal force on bearing balls is extreme. Silicon nitride (Si3N4) ceramic balls have 60% lower density than steel (3.2 vs 7.8 g/cm³), reducing centrifugal load by 40% at the same speed. Additional benefits: lower coefficient of friction (reduces heat generation by 30–50%), higher hardness (extends fatigue life), electrical insulation (prevents bearing current damage from VFD common-mode voltage), and better high-temperature performance. Ceramic hybrid bearings are essential for reliable operation above 30,000 RPM.
Can I use these motors for direct-drive spindle applications?
Yes. The 170TD50Y80 is specifically designed for direct-drive electrospindle integration. Its compact 170mm housing, flange mounting, and high-speed capability make it an excellent choice for building custom high-speed spindle systems. The 210TD25Q100 is better suited for belt-drive configurations where its higher torque at moderate speeds can be transmitted through a speed-increasing belt drive to the spindle. Both motors require proper bearing arrangements on the driven side to handle the combined radial and axial cutting loads.
What maintenance do these high-speed motors require?
Routine maintenance schedule: Daily — check cooling water flow and temperature, verify oil-air mist delivery. Weekly — inspect vibration levels (trend monitoring for bearing condition), check oil reservoir level. Monthly — verify encoder signal quality, inspect electrical connections, clean cooling circuit filters. Annually — bearing condition assessment via vibration analysis, cooling system flush, electrical insulation resistance test (megger test). Bearing replacement interval: typically 8,000–12,000 hours under normal conditions. We provide detailed maintenance manuals and offer factory rebuild services.
Do you provide the drive/inverter with the motor?
We offer compatible high-frequency servo drives as an optional package. Our engineering team will recommend specific drive models based on your input voltage (380V/480V), control interface requirements (pulse train, analog, EtherCAT, PROFINET), and application needs. Complete motor + drive packages are tested together at our facility before shipment, ensuring plug-and-play compatibility. We also provide drive parameter files and commissioning support documentation. If you prefer to source your own drive, we provide full motor electrical specifications for drive sizing.
