What Is a CNC Electrospindle?
A CNC electrospindle (motorized spindle) integrates the motor rotor directly onto the spindle shaft, eliminating belts, gears, and couplings. This direct-drive architecture delivers superior rigidity, reduced vibration, and exceptional rotational accuracy — enabling higher speeds, better surface finishes, and longer tool life compared to belt-driven spindles.
Luoyang Songju manufactures CNC electrospindles for vertical and horizontal machining centers in 15 standard models spanning 3.7–75 kW, with speeds up to 42,000 RPM. Available with synchronous (permanent magnet) or asynchronous (induction) motors, BT/HSK/ISO tool interfaces, and P4/P2 precision bearings. Every spindle is dynamically balanced to G0.4, individually tested for runout, and shipped with a complete inspection certificate.
Direct Drive
No belts, zero backlash, higher efficiency
0.001mm Runout
Laser-verified at spindle nose
P4/P2 Bearings
Ceramic hybrid options for high-speed
ISO 9001:2015
Certified quality management system
CNC Electrospindle
Milling & Machining Center Spindles
17 Models | 12–52kW | Up to 120,000 RPM | BT/HSK/ISO Tool Interfaces
Precision CNC electrospindles engineered for milling, drilling, boring, and gun drilling operations in vertical and horizontal machining centers. Synchronous and asynchronous motor options available with 0.001mm runout accuracy.
High-Performance CNC Spindles for Production Machining
Luoyang Songju CNC electrospindles power the world's most demanding production machining operations. From compact 120XDJ24G12 (12kW) for high-speed light milling to massive 260XDJ15G45 (45kW) for heavy roughing, our spindle lineup covers the full spectrum of CNC machining requirements.
Every spindle features precision P4/P2 grade bearings, dynamically balanced rotors, and integrated cooling channels. Tool interfaces include BT40, BT50, HSK-A63, HSK-A80, HSK-A100, and ISO standards — with custom interfaces available. Ceramic hybrid bearing options enable ultra-high-speed operation up to 120,000 RPM for micro-machining applications.
Synchronous (servo) motor spindles provide precise speed control and positioning for rigid tapping and contour milling. Asynchronous motor spindles deliver higher power density for aggressive material removal rates. Every spindle ships with a complete inspection report including runout measurement, vibration spectrum analysis, and full-speed run-in test data.
Request QuoteMilling & Machining Center Spindles
Synchronous and asynchronous motor spindles engineered for vertical and horizontal CNC machining centers. High torque at low RPM with wide constant-power range. Suitable for heavy cutting, high-speed milling, drilling, tapping, rigid tapping, and boring operations across steel, aluminum, titanium, and composites. Available with BT40, BT50, HSK A63, HSK A80, HSK A100, HSK E40, HSK E50, and HSK T100 tool interfaces.
Power range 3.7–75 kW across 14 models. Every spindle features P4/P2 grade precision bearings, dynamic balancing to G0.4, integrated water-cooling, and comprehensive sensor integration. Custom tool interfaces, ceramic hybrid bearings, and enhanced sealing (IP65) available as options.
287XDJ10G75

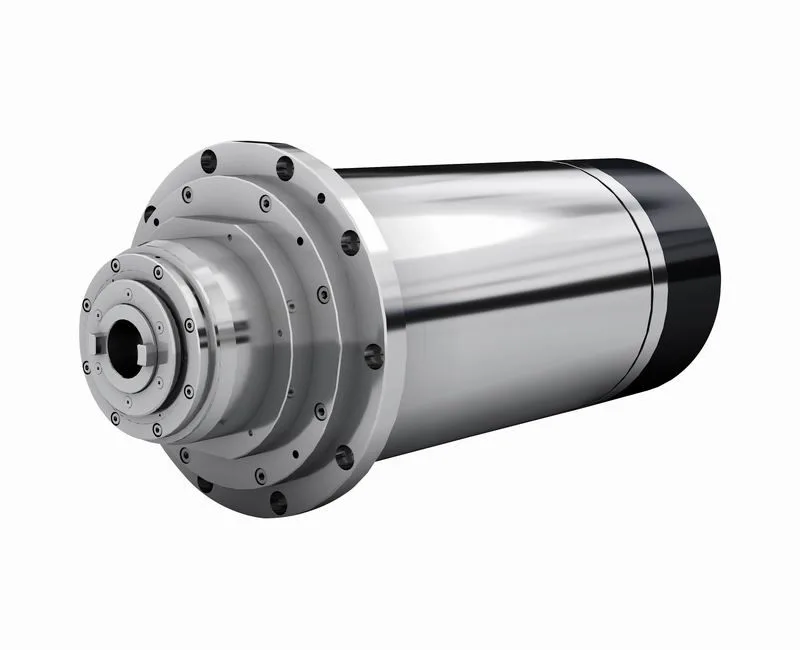

260XDJ15G45

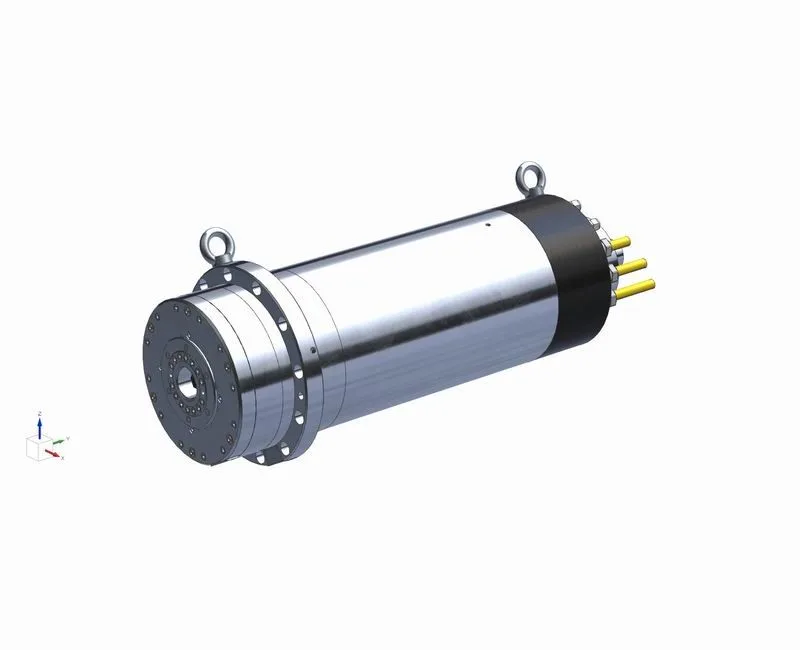

230XDJ12G40

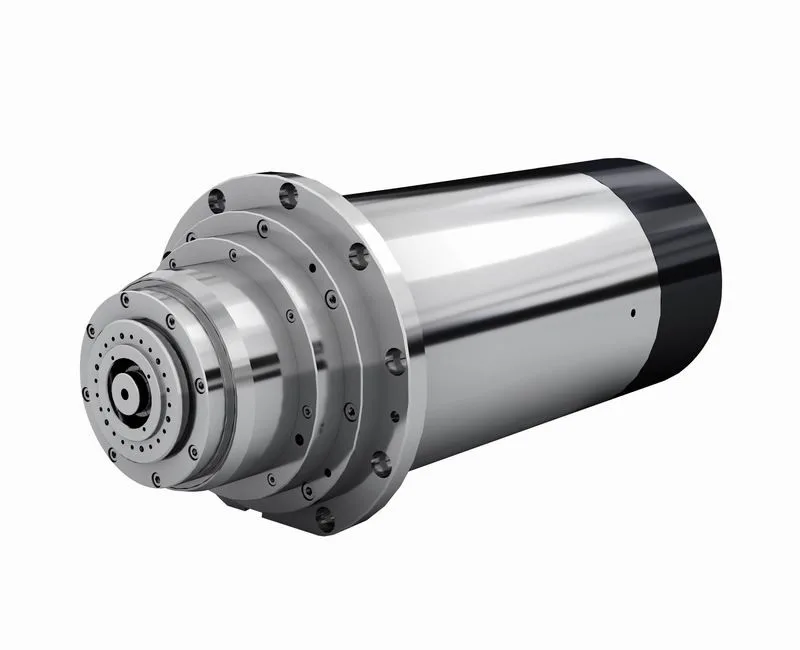

230XDJ15G35

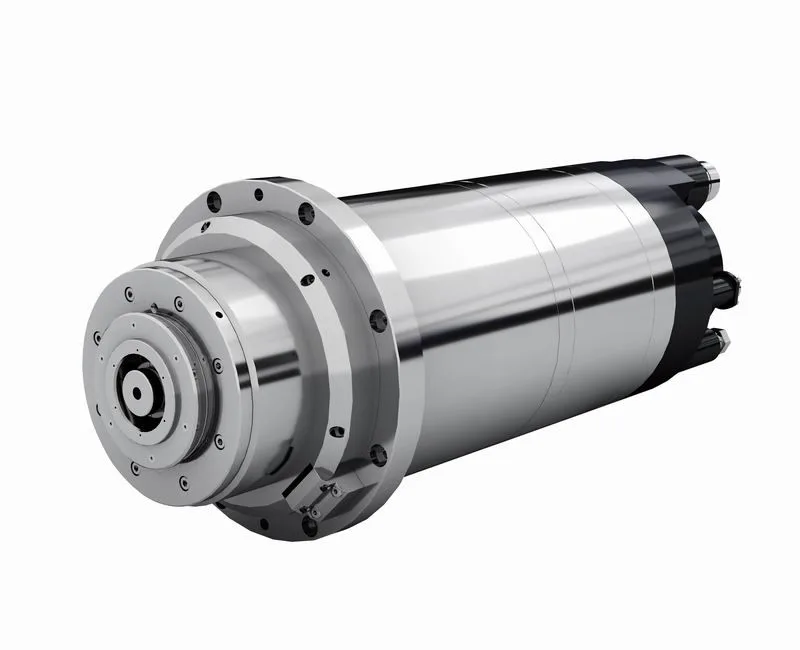

210XDJ15G15

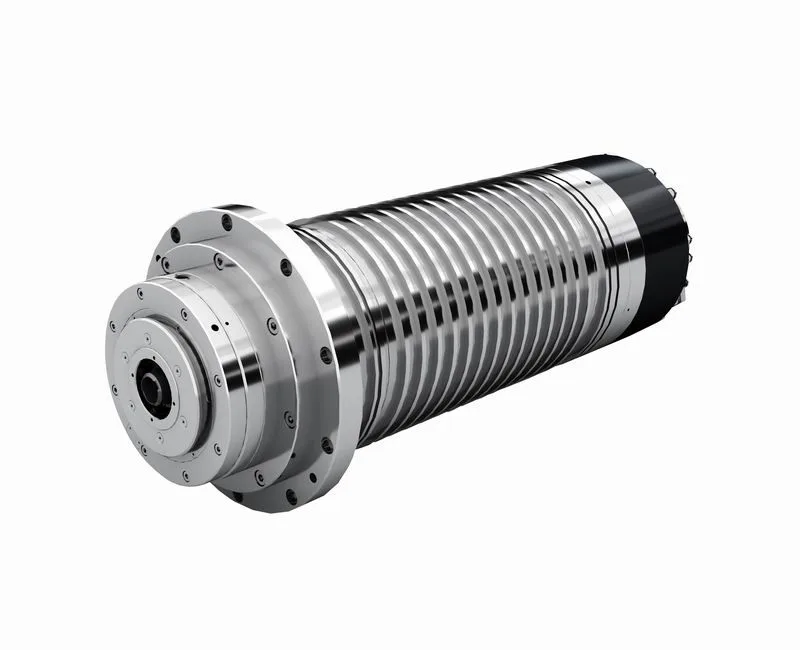

210XDJ24Y32

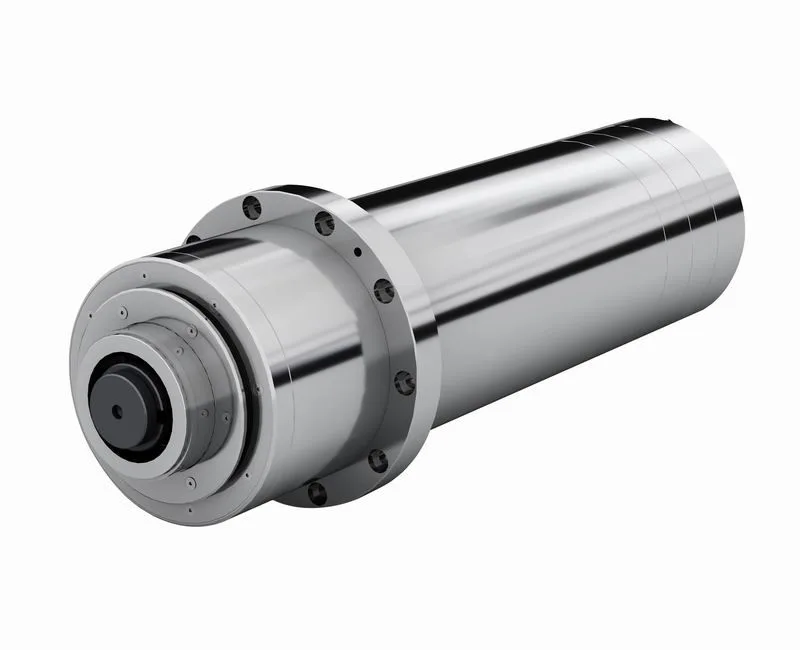

190XDJ08G52.5 HC100

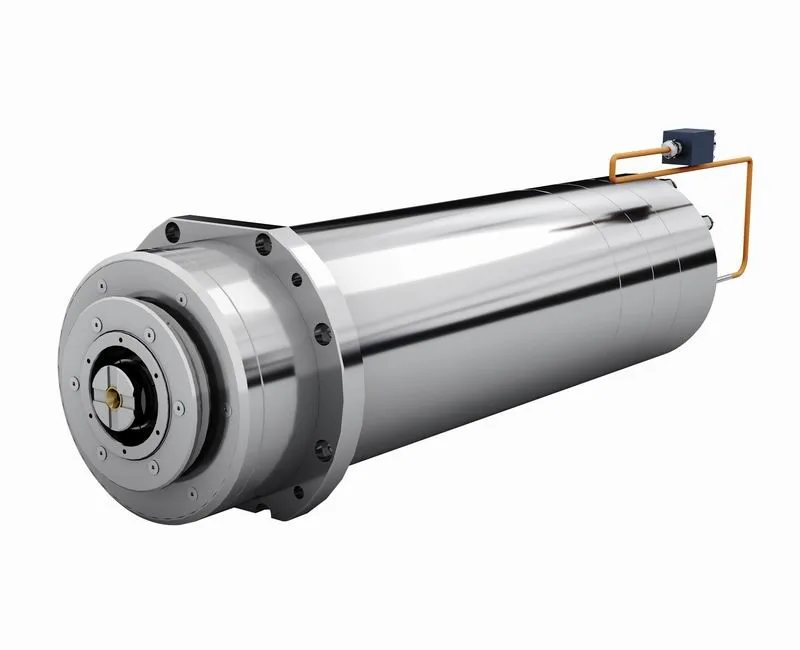

170XDJ10G50

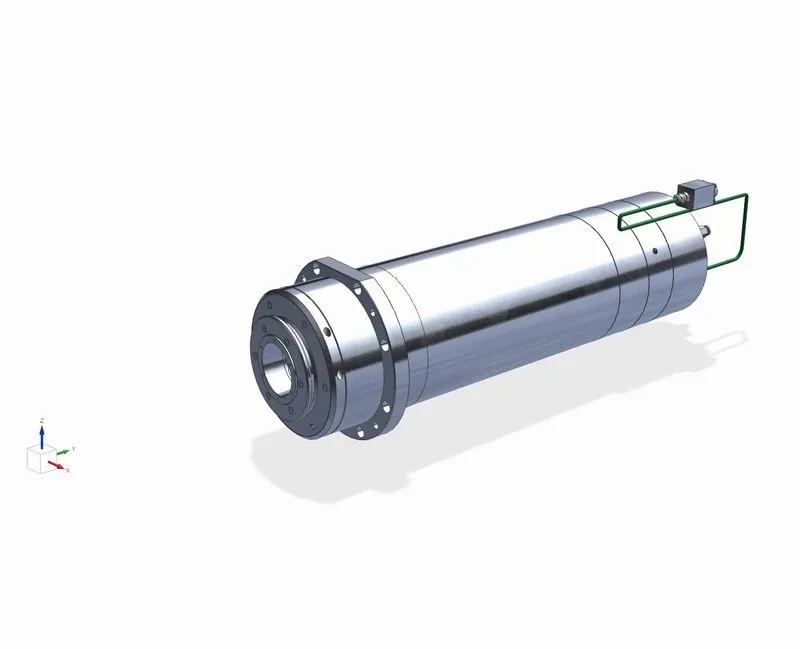

170XDJ10G52 HSKA80

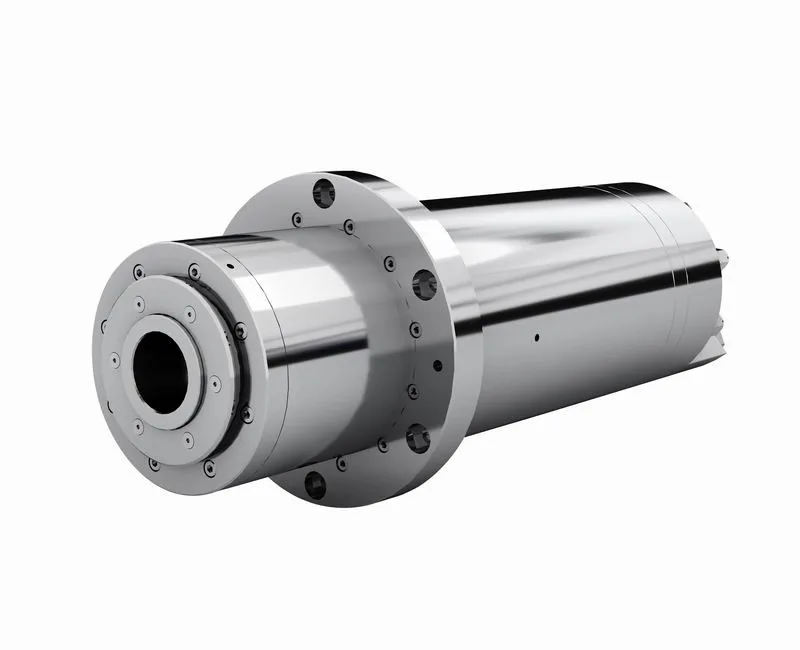

160XDJ18G18

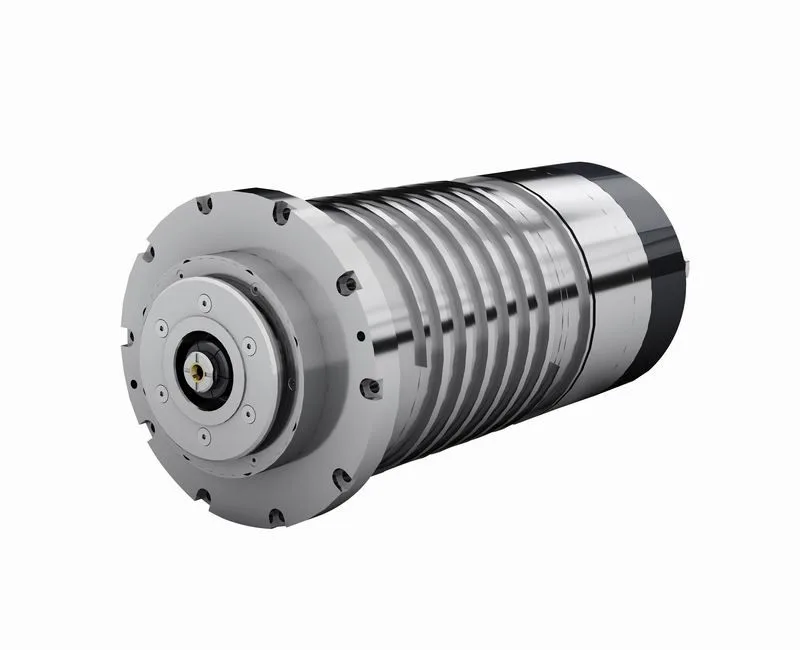

150XDJ15G26

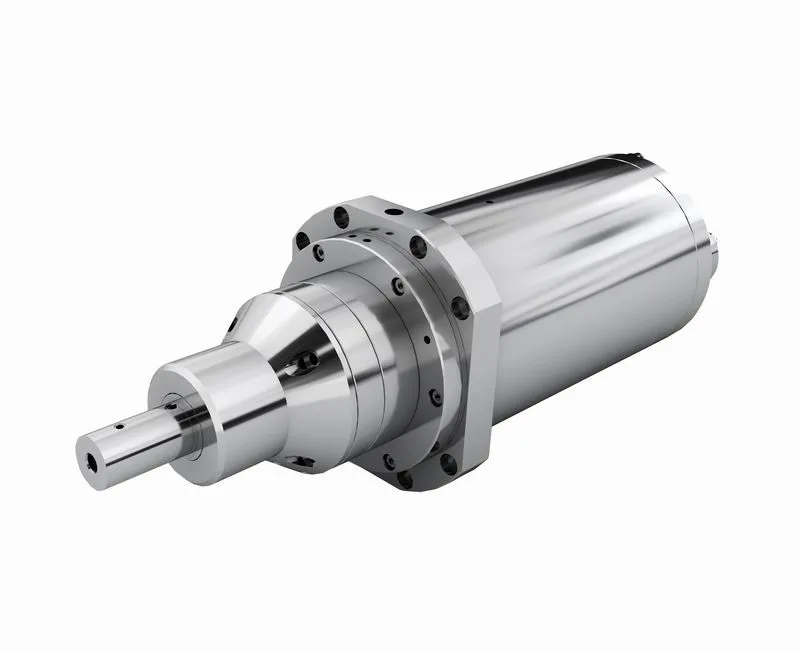

150ZD20G3.7

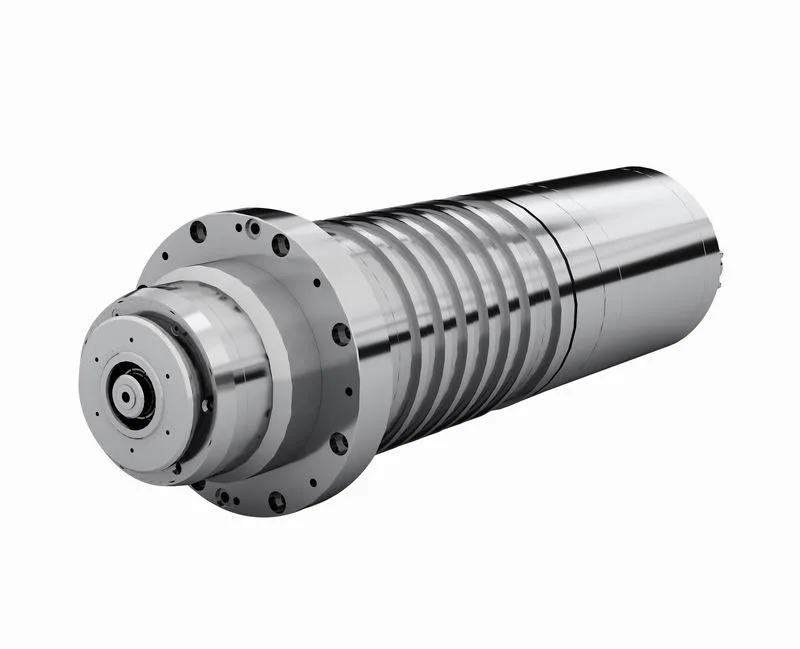

125XDJ32G16

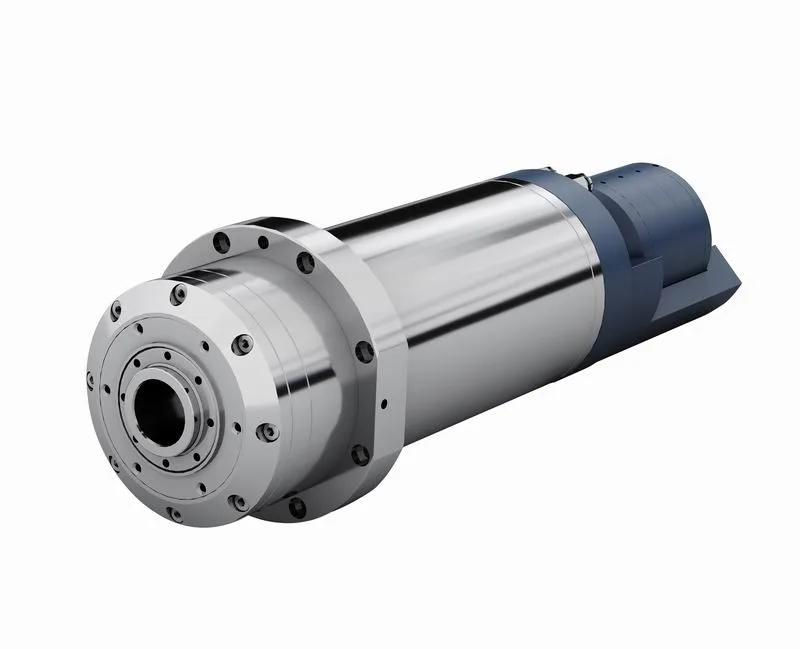

120XDJ24G12

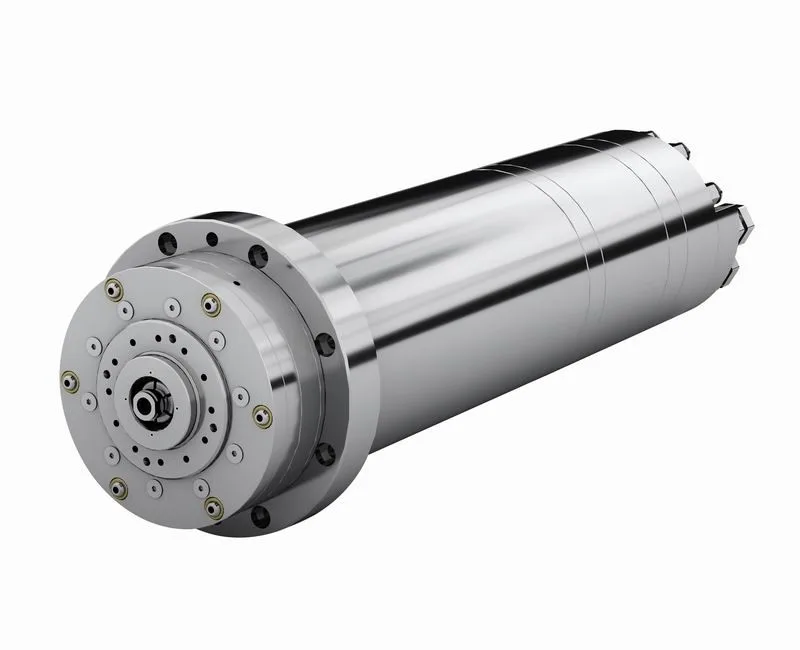

120XDJ42Q17
CNC Electrospindle Types & Technologies
Understanding spindle motor types, tool interfaces, and bearing configurations to select the optimal solution
Synchronous Motor Spindles (G/Y Type)
Permanent magnet synchronous motors (PMSM) deliver precise speed control with constant torque across the entire operating range. 94–96% efficiency means less waste heat and lower cooling demands. Essential for rigid tapping, C-axis positioning, thread milling, and high-quality contour finishing where speed precision matters. Models with "G" or "Y" suffix: 120XDJ24G12, 230XDJ15G35, 260XDJ15G45, 210XDJ24Y32.
Asynchronous Motor Spindles (Q Type)
Induction motor spindles offer higher peak power density at a lower cost point. Speed varies slightly with load — acceptable for roughing operations where precise speed regulation is less critical. Simpler drive electronics (standard VFD). Best for heavy material removal, continuous roughing, and applications where cost-effectiveness is prioritized over positioning precision. Models: 120XDJ42Q17, 230XDJ12G40.
Tool Interfaces — BT, HSK, ISO
BT40 (DIN 69871): Universal standard for spindles up to 15,000 RPM. BT50: Heavy-duty large flange for roughing. HSK-A63/A80/A100 (DIN 69893): Hollow shank, high-speed capable, better accuracy at high RPM. HSK-E40/E50: For micro-machining at 32,000–42,000 RPM. HSK T100: Large machining centers. We match the interface to your existing tooling inventory.
Bearing Configurations
All CNC spindles use minimum P4 (ABEC-7) precision angular contact ball bearings in back-to-back (DB) or tandem-O (TBT) arrangements. Grease lubrication standard for speeds up to 18,000 RPM; oil-air micro-lubrication for speeds above 18,000 RPM and high-duty-cycle production. Ceramic hybrid bearings (Si3N4 balls) available as an upgrade — reduce centrifugal load by 40%, extend service life by 30–50% at high speeds.
Cooling & Thermal Management
Spiral water-jacket cooling is standard on all spindles above 12kW, maintaining stable bearing and motor temperatures during extended machining cycles. External chiller required with minimum 6 L/min flow rate. Built-in PT100 temperature sensors at front and rear bearings provide real-time thermal data to the machine controller for proactive protection. Thermal growth is compensated through the CNC control for consistent part dimensions.
Sensor Integration & Diagnostics
Standard sensor package: 2× PT100 temperature sensors (front + rear bearings), vibration accelerometer mounting provision, drawbar position sensor (digital output). Optional: rotary encoder for rigid tapping and C-axis positioning, tool identification RFID, and Industry 4.0-compatible vibration monitoring with predictive maintenance algorithms. All sensor data accessible via standard machine controller interfaces.
Why Choose Our CNC Electrospindles
Engineered for performance, tested to the highest standards, backed by global support
Sub-Micron Runout Accuracy
Every spindle is individually tested with laser interferometry. Maximum runout of 0.001mm at the spindle nose is guaranteed and documented in the inspection certificate. This directly translates to superior surface finish, extended tool life, and consistent part quality across production batches.
High-Speed Capability
Spindle speeds from 10,000 to 42,000 RPM accommodate the full range of modern carbide tooling. High-speed models (120XDJ42Q17 at 42,000 RPM) are purpose-built for micro-machining with tools under 3mm diameter. Oil-air lubrication and ceramic hybrid bearings enable reliable continuous high-speed operation.
High Torque at Low RPM
Synchronous motor spindles maintain constant torque from low to maximum speed. The 170XDJ10G50 delivers 478 Nm at 10,000 RPM for aggressive steel roughing; the 287XDJ10G75 delivers 551 Nm for large-scale boring and milling. Wide constant-power range eliminates the need for gear changes during machining cycles.
Long Service Life
With proper cooling and lubrication maintenance, our spindles typically achieve 8,000–15,000 operating hours before bearing replacement. P4/P2 precision bearings with optimized preload, labyrinth seal designs, and air purge connections minimize contamination ingress — the primary cause of premature spindle failure.
100% Pre-Shipment Testing
8-point inspection protocol on every spindle: runout (laser), vibration spectrum (FFT analysis), temperature rise (thermal camera), drawbar force, tool taper contact (blue-check), coolant passage integrity, sensor function validation, and full-speed run-in test. Inspection video and certified test report provided before shipment.
Global Support & Service
Technical support in English, Chinese, and Russian. Spindle repair and rebuild service at our Luoyang facility with typical 2-week turnaround. Emergency replacement spindles stocked for popular models. Remote troubleshooting with video guidance available 24/7. 12-month standard warranty with extended options.
How to Select a CNC Electrospindle
Five key decisions for matching the right milling spindle to your machining application
Power (kW) — Match to Material & MRR
Aluminum machining at high feed rates: 12–20kW. General steel machining (P20, 4140): 18–35kW. Titanium and superalloy roughing: 35–52kW. Our 120XDJ24G12 (12kW) excels in light high-speed milling; the 260XDJ15G45 (45kW) handles heavy roughing in large VMCs. Calculate required kW = MRR (cm³/min) × specific cutting energy ÷ 60,000.
Speed (RPM) — Match to Tool Diameter
Small tools (<6mm): 24,000–42,000 RPM for effective cutting speed. Medium tools (6–20mm): 12,000–24,000 RPM. Large tools (>20mm): 8,000–15,000 RPM. High-speed spindles (210XDJ24Y32 at 24,000 RPM) are optimized for small-diameter tooling in die/mold finishing; standard-speed spindles (230XDJ12G40 at 12,000 RPM) for general production with larger tools.
Motor Type — Synchronous vs Asynchronous
Synchronous (PMSM): Models marked with a "G" or "Y" suffix. Offer precise speed control, constant torque, and 94–96% efficiency. Essential for rigid tapping, thread milling, C-axis positioning, and high-quality contour finishing. Asynchronous (Induction): Higher peak power density, simpler drive electronics. Best for roughing operations where precise angular positioning is less critical. Luoyang Songju offers both types across the CNC spindle range.
Tool Interface — BT40, BT50, or HSK?
BT40 (DIN 69871): Most common. Spindles up to 15,000 RPM, 26kW. Models: 120XDJ24G12, 150XDJ15G26, 160XDJ18G18, 210XDJ15G15. BT50: Heavy roughing with large face mills. Spindles up to 40kW. Model: 230XDJ12G40. HSK-A63 (DIN 69893): High-speed, high-accuracy. Models: 210XDJ24Y32, 230XDJ15G35. HSK-A80/A100: Heavy-duty high-speed. Models: 170XDJ10G50, 170XDJ10G52, 260XDJ15G45. HSK-E40/E50 for micro-machining: 120XDJ42Q17, 125XDJ32G16.
Housing Diameter — Machine Cartridge Compatibility
Spindle housing diameter must match your machine's spindle bore. Our CNC range: 120mm (compact BT40, 12–17kW), 125mm (high-speed HSK E50, 16kW), 150mm (mid-size BT40, 26kW + gun drill), 160mm (mid-size BT40, 18kW), 170mm (heavy-duty HSK A80/A100, 50–52kW), 210mm (large VMC, 15–32kW), 230mm (large VMC/HMC, 35–40kW), 260mm (heavy boring/milling, 45kW), 287mm (extra-large machining center, 75kW). Contact our engineers with your machine model for guaranteed fitment verification.
Synchronous vs Asynchronous Motor Technology
Understanding motor types helps you select the optimal spindle for your specific machining requirements
| Feature | Synchronous Motor (PMSM) | Asynchronous Motor (Induction) |
|---|---|---|
| Speed Control | Precise closed-loop control. Constant speed under varying load. Ideal for rigid tapping and contour milling. | Speed varies slightly with load. Open-loop VFD control adequate for most roughing operations. |
| Efficiency | 94–96%. Less waste heat. Lower cooling system demand. | 88–92%. More rotor losses. Requires robust cooling. |
| Power Density | High. Compact rotor with permanent magnets. | Very high. Capable of higher peak overload. |
| Torque Characteristic | Constant torque across speed range. High torque at low RPM for heavy cuts. | Peak torque at rated speed. Reduced torque at low RPM without oversizing. |
| Drive Complexity | Requires encoder feedback and specialized servo drive. | Standard VFD. Simpler integration. |
| Best For | Finishing, rigid tapping, die/mold, aerospace. Models: G/Y suffix (e.g., 230XDJ15G35, 210XDJ24Y32). | Heavy roughing, high-MRR operations. Cost-effective for general machining. |
| Luoyang Songju Models | 150ZD20G3.7, 120XDJ24G12, 125XDJ32G16, 150XDJ15G26, 160XDJ18G18, 170XDJ10G50, 170XDJ10G52, 210XDJ15G15, 210XDJ24Y32, 230XDJ12G40, 230XDJ15G35, 260XDJ15G45, 287XDJ10G75 | 120XDJ42Q17 — high-speed asynchronous for micro-machining up to 42,000 RPM. |
Industries & Use Cases
CNC electrospindles power critical machining operations across diverse manufacturing sectors worldwide
CNC Machining Centers
Primary application. Vertical and horizontal machining centers for milling, drilling, tapping, and boring. Our spindles power VMCs from 12kW compact models to 75kW large-scale HMCs. BT40/BT50/HSK interfaces matched to your machine architecture.
Automotive Manufacturing
Engine blocks, cylinder heads, transmission cases, brake calipers, EV motor housings. High-volume production lines with 24/7 operation. Our synchronous spindles deliver the speed precision needed for rigid tapping and thread milling of aluminum and cast iron components.
Aerospace Components
Turbine disks, structural airframe components, landing gear parts. Titanium and nickel alloy machining demands high torque at low-to-mid RPM. Our 170XDJ10G50 (478 Nm) and 287XDJ10G75 (551 Nm) spindles excel in these challenging materials.
Die & Mold Manufacturing
Injection molds, die casting dies, forging dies. High-speed finishing with small ball-nose end mills requires 24,000–42,000 RPM spindles. Our 120XDJ42Q17 (42,000 RPM, HSK E40) and 210XDJ24Y32 (24,000 RPM, HSK A63) deliver the speed and precision for superior mold surface finish.
Deep Hole Drilling
Gun drilling and BTA drilling for mold cooling channels, hydraulic manifolds, automotive crankshaft oil passages, and aerospace landing gear struts. Our 150ZD20G3.7 gun drill spindle delivers 1,500mm depth capability with coolant-through-spindle and IP65 protection.
General Precision Machining
Job shops, contract manufacturers, and production facilities machining diverse materials. Our mid-range spindles (150XDJ15G26 at 26kW, 230XDJ15G35 at 35kW) offer the versatility needed for mixed-volume production across steel, aluminum, stainless, and cast iron workpieces.
Custom CNC Spindle Manufacturing
Approximately 40% of our spindle production is custom-configured to specific customer requirements. Beyond our 15 standard models, we offer comprehensive OEM services — from minor modifications of existing designs to fully custom spindle solutions engineered to your machine specifications.
Custom Tool Interfaces
BT30, CAT40, Capto C6/C8, KM, HSK variants — any standard or custom interface
Bearing Upgrades
P2 (ABEC-9) ceramic hybrid bearings, custom preload, specialized arrangements for unique load cases
Modified Cooling & Lubrication
Increased cooling capacity, alternative coolant types, oil-mist, or minimum-quantity lubrication
Retrofit & Replacement
Drop-in replacement spindles for existing machines — we match mounting flange, drawbar, and sensor interfaces
Private Label & Branding
Your brand, part numbers, and documentation. Custom packaging and certification per your requirements
Standard Customization Options
CNC Electrospindle FAQ
What is the difference between a CNC electrospindle and a belt-driven spindle?
An electrospindle (motorized spindle) integrates the motor directly into the spindle shaft, eliminating belts, pulleys, and gearboxes. Benefits include: higher maximum speeds (up to 120,000 RPM vs ~15,000 RPM for belt-driven), zero belt vibration for better surface finish, 5–10% higher energy efficiency, and compact machine design. The trade-off is higher initial cost, but total cost of ownership is lower due to reduced maintenance (no belt replacements) and higher productivity from faster cycle times.
How long do Luoyang Songju CNC spindles last?
With proper maintenance and operation within rated parameters, our spindles typically achieve 8,000–15,000 operating hours before bearing replacement. Key factors affecting lifespan: cutting loads (staying within torque limits), cooling system performance (maintaining stable temperature), lubrication quality and schedule, and contamination prevention (proper sealing and air purge). We provide detailed maintenance schedules with each spindle. Bearing replacement and rotor rebalancing services are available at our Luoyang facility with typical 2-week turnaround.
Can you customize a spindle for my specific machine?
Yes. Approximately 40% of our spindle production is custom-configured. Common customizations include: non-standard tool interfaces (special HSK/Capto variants), custom housing diameters and flange patterns for retrofit projects, extended shaft lengths, unique sensor packages (vibration, temperature, position), special coating for corrosive environments, and modified cooling channel configurations. Our engineering team reviews your machine drawings and provides a detailed compatibility assessment before production. Minimum order quantity for full custom designs is typically 1–5 units.
What is included in the standard spindle delivery?
Every Luoyang Songju CNC spindle ships as a complete package: spindle unit with integrated motor, drawbar/clamping system, lubrication system (grease-packed or oil-air metering unit), temperature sensors (PT100), coolant rotary union, integration manual, inspection certificate (runout, vibration, temperature test data), and CAD files (STEP and DWG format). Optional additions: compatible servo drive/vfd recommendation, mounting bracket kit, tool clamping/unclamping hydraulic unit, and external cooling chiller. Everything needed for plug-and-play installation.
What is your warranty and after-sales support?
Standard warranty: 12 months from shipment or 2,000 operating hours (whichever comes first). Extended warranty options available. After-sales support includes: 24-hour technical response via email/phone, remote troubleshooting with video guidance, spare parts availability (bearings, sensors, drawbar components) shipped within 48 hours, and spindle repair/rebuild service at our Luoyang facility. For critical production equipment, we offer emergency replacement spindle programs with pre-positioned inventory.
