High Speed Motor
210TD25Q100
Powerful 100 kW asynchronous belt-drive spindle motor for industrial drive applications. 25,000 r/min, water-cooled, P4 precision bearings with Flange B5 mounting.

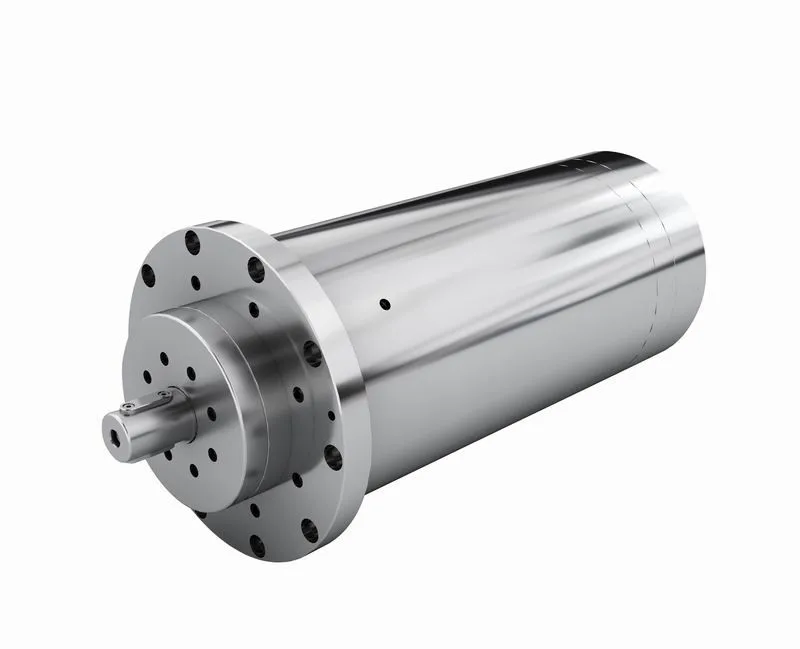

210TD25Q100 High Speed Motor
The 210TD25Q100 is a high-power asynchronous high-speed motor designed for demanding industrial drive applications requiring both elevated rotational speeds and substantial power output. Delivering 100 kW of continuous power at speeds up to 25,000 r/min with 38.2 Nm of torque, this motor serves as the prime mover for belt-driven spindle systems, high-speed test rigs, centrifugal compressors, and specialized industrial machinery.
The asynchronous motor design provides robust, field-proven reliability with excellent overload capability and a wide constant-power speed range. P4 precision angular contact ball bearings support the high-speed rotor with consistent accuracy and long service life. An efficient water-jacket cooling system manages the thermal output of the 100 kW motor, enabling continuous operation at full rated power. The 210mm housing diameter with standard Flange B5 (IEC) mounting interface facilitates integration into custom machine builds and OEM equipment. Weighing approximately 310 kg, this motor is engineered for stability and durability in demanding production environments. Built-in PT100 temperature sensors provide real-time thermal monitoring for motor protection and process control. Operating at ≤75 dB(A) with IP54 protection, the 210TD25Q100 is manufactured to ISO 9001:2015 quality standards with full material traceability and test certification.
Download Drawing Get a QuoteDetailed Parameters
| Speed (r/min) | 25000 |
| Power (kW) | 100 |
| Torque (Nm) | 38.2 |
| Motor Type | Asynchronous Motor |
| Drive Type | Belt-drive spindle motor |
| Bearing Type | P4 Angular Contact Ball Bearings |
| Bearing Lubrication | Oil-air micro-lubrication |
| Cooling Method | Water-jacket cooling with external chiller |
| Housing Diameter | 210mm |
| Housing Material | Alloy Steel |
| Spindle Weight | ~310 kg |
| Mounting Type | Flange B5 (IEC) |
| Noise Level | ≤ 75 dB(A) at max speed |
| Protection Class | IP54 |
| Balancing Grade | G0.4 per ISO 1940-1 |
| Insulation Class | H (180°C) |
| Sensor Integration | Built-in temperature sensor (PT100) |
| Mounting Orientation | Vertical / Horizontal |
| Application | Belt-driven spindle systems for CNC machine tools |
Available Options & Customizations
- P4 hybrid ceramic bearings for higher speeds
- Built-in encoder for speed feedback
- Custom flange mounting dimensions
- Extended shaft configurations
- Integrated cooling fan
- Increased IP65 protection
Industrial-Grade High-Speed Drive
The 210TD25Q100 delivers 100 kW of reliable power at 25,000 rpm with proven asynchronous motor technology and robust water-cooling.
100 kW Continuous Power
High power rating for demanding industrial belt-drive spindle applications.
25,000 rpm Speed
High rotational speeds for spindle drives and high-speed machinery.
Asynchronous Motor
Proven induction motor technology for maximum reliability and field-proven durability.
Water-Jacket Cooling
Efficient liquid cooling enables continuous 100 kW operation without thermal derating.
P4 Precision Bearings
High-grade angular contact ball bearings ensure accurate rotor positioning and long service life.
Flange B5 Standard Mounting
IEC standard flange mounting for straightforward integration into machine tool builds and OEM equipment.
Built-in Temperature Sensing
PT100 sensor provides real-time thermal data for proactive motor protection and control.
≤75 dB(A) Operation
Controlled noise levels for improved workplace environment and flexible installation options.
