Home > Products > Electric Spindle > Grinding spindle > Internal grinding spindle > Internal grinding spindle 120MD45Y15

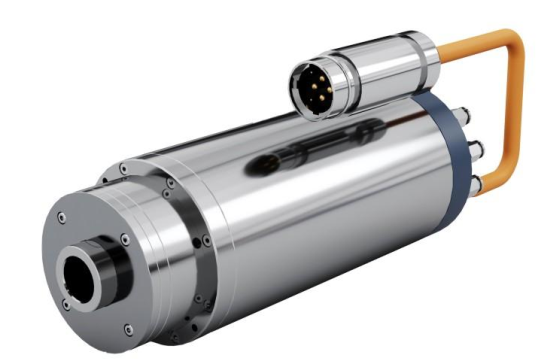

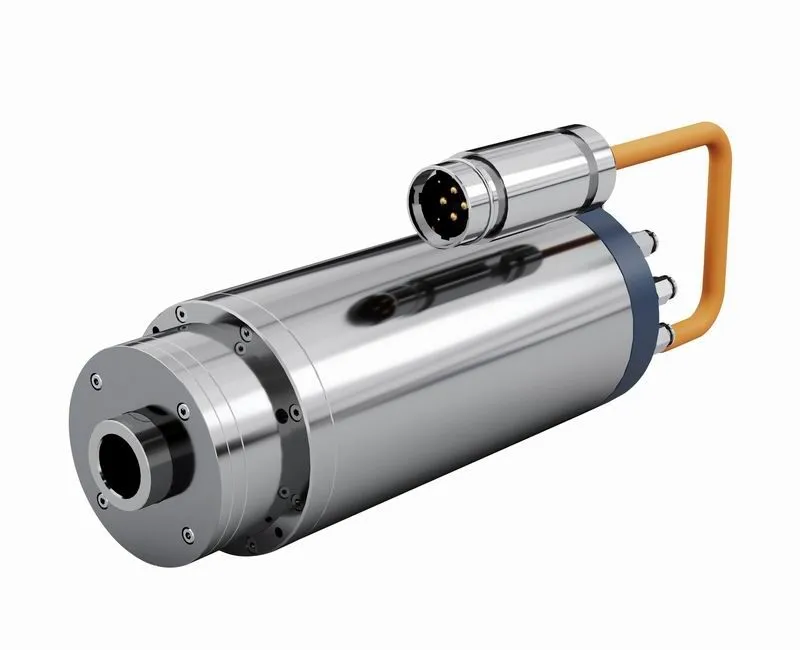

  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A
  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A
  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A
  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A

Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A

This type of spindle has a rotation speed of 45000RPM,Power of 15kW,Torque of 4.7Nm,can be used on internal grinding machine tools with good stability.
Rotation seed
S1 30000RPM,S6 45000RPM
Power
S1 11kW,S6 15kW.
Torque
S1 3.5Nm,S6 4.7Nm
Voltage
350V
Frequency
1500HZ
Current
26A
GET A QUOTE
  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A
  • Internal grinding spindle 120MD45Y15:Rotation seed,S1 30000RPM,S6 45000RPM Power,S1 11kW,S6 15kW Torque,S1 3.5Nm,S6 4.7Nm Voltage,350V Frequency,1500HZ Current,26A

Description

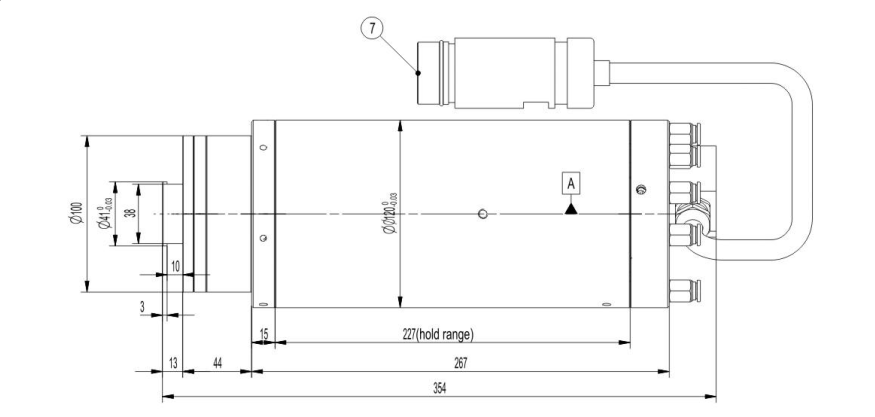

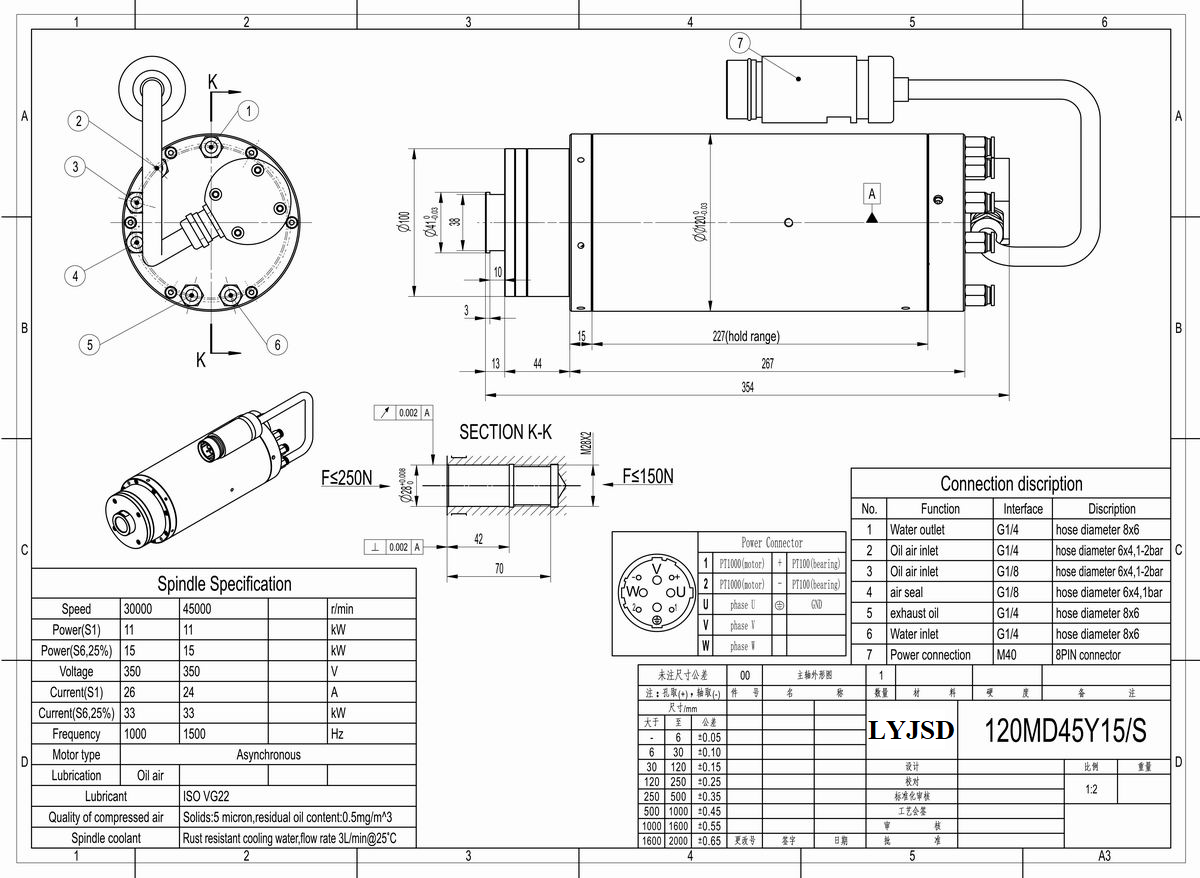

If you need more detailed parameters please find them as below:
Luoyang Songju Science and Technology Co., Ltd. is mainly engaged in the manufacture and sale of precision machine tool accessories.Our products are widely used in CNC machining centers, precision CNC grinding machines, CNC lathes, CNC milling machines and so on.
