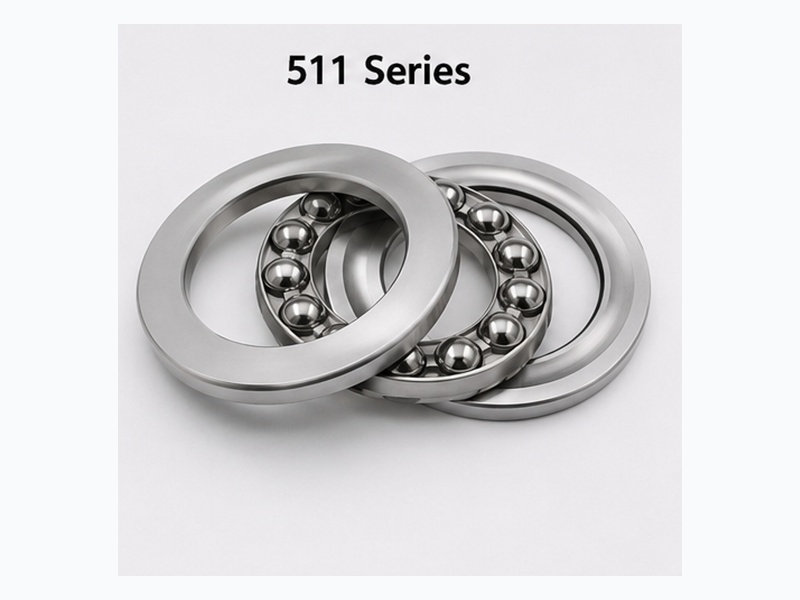

511 Series
Extra Light Thrust Ball Bearings
10–500mm Bore | Single Direction | Flat Back Face | P5/P4/P0 Grade
The 511 series is the most compact and economical thrust ball bearing type. Single-direction design with flat housing washer handles pure axial loads in one direction. Ideal for vertical shaft supports, steering columns, and general industrial machinery where axial space is limited.
Compact Axial Support for Light-Duty Industrial Applications
Luoyang Songju 511 series extra-light thrust ball bearings are manufactured from GCr15 bearing steel in our ISO 9001:2015 certified facility. The flat housing washer design provides the most compact axial profile of any thrust bearing type — enabling integration into space-constrained assemblies where every millimeter of height matters.
The separable design (shaft washer, housing washer, and ball-cage assembly are independent components) simplifies mounting and disassembly. The shaft washer has a precision-ground bore for interference fit on the shaft, while the housing washer bore is clearance-fit for easy assembly.
511 series bearings are available in bore sizes from 10mm to 500mm, with pressed steel cages as standard. Machined brass cage variants (suffix M) are available for elevated temperature applications. For applications requiring axial location in both directions, consider pairing two 511 bearings or selecting a 522 series double-direction bearing.
Request Quote
511 Series Model Parameters
Complete standard model list. d = Bore, D = Outer diameter, T = Height, Ca = Dynamic axial load, C0a = Static axial load. Data per SKF/NTN/NSK catalogs.
| Model | d (mm) | D (mm) | T (mm) | Ca (kN) | C0a (kN) | Mass (kg) |
|---|---|---|---|---|---|---|
| 51100 | 10 | 24 | 9 | 10.1 | 14.9 | 0.020 |
| 51101 | 12 | 26 | 9 | 10.4 | 16.2 | 0.022 |
| 51102 | 15 | 28 | 9 | 10.6 | 17.6 | 0.024 |
| 51103 | 17 | 30 | 9 | 10.8 | 18.2 | 0.026 |
| 51104 | 20 | 35 | 10 | 14.6 | 26.5 | 0.038 |
| 51105 | 25 | 42 | 11 | 17.6 | 35.4 | 0.056 |
| 51106 | 30 | 47 | 11 | 18.8 | 40.9 | 0.064 |
| 51107 | 35 | 52 | 12 | 20.8 | 48.6 | 0.082 |
| 51108 | 40 | 60 | 13 | 26.9 | 62.9 | 0.114 |
| 51109 | 45 | 65 | 14 | 27.6 | 69.6 | 0.140 |
| 51110 | 50 | 70 | 14 | 28.8 | 75.5 | 0.152 |
| 51111 | 55 | 78 | 16 | 35.0 | 93.0 | 0.224 |
| 51112 | 60 | 85 | 17 | 41.2 | 113.0 | 0.278 |
| 51113 | 65 | 90 | 18 | 41.7 | 117.0 | 0.308 |
| 51114 | 70 | 95 | 18 | 43.0 | 127.0 | 0.332 |
| 51115 | 75 | 100 | 19 | 44.5 | 135.0 | 0.382 |
| 51116 | 80 | 105 | 19 | 44.8 | 141.0 | 0.404 |
| 51118 | 90 | 120 | 22 | 59.5 | 190.0 | 0.658 |
| 51120 | 100 | 135 | 25 | 85.0 | 268.0 | 0.942 |
All models available in P5, P4, P0 precision grades. Standard: GCr15 steel, pressed steel cage, open configuration. M suffix = machined brass cage. Contact engineering for sealed variants and custom sizes.
Why Choose Luoyang Songju 511 Series
The lightest thrust ball bearing — engineered for compact, economical axial support
Extra Light Cross-Section
The 511 series features the thinnest cross-section in the thrust ball bearing family. For a given bore size, the 511 bearing requires the minimum axial space — ideal for compact machine designs, steering columns, and applications where height constraints are critical.
Separable 3-Piece Design
Shaft washer, housing washer, and ball-cage assembly are independent, interchangeable components. Simplifies mounting, inspection, and replacement. Mix and match washers from different bearings if needed for maintenance flexibility.
High Speed Capability
The extra-light cross-section minimizes centrifugal forces on the ball complement, enabling the highest limiting speeds in the thrust ball bearing family. 51100 reaches 8,500 rpm — ideal for high-speed vertical shaft applications.
GCr15 Bearing Steel
Rings and balls manufactured from vacuum-degassed GCr15 (100Cr6/52100) steel. Through-hardened to 58–64 HRC for consistent wear resistance and long service life under repetitive axial loading conditions.
SKF/NTN/NSK Interchangeable
Manufactured to ISO dimensional standards. Direct drop-in replacement for SKF 511, NTN 511, NSK 511, and FAG 511 series thrust ball bearings. Same dimensions, same performance — competitive pricing.
Pressed Steel Cage Standard
Standard pressed steel ball cage provides reliable ball guidance with minimal friction. Machined brass cage (M suffix) available for high-temperature or high-speed applications. Cage material selected to match your operating conditions.
Industries & Applications for 511 Series
Trusted across precision industries worldwide for reliable axial load support
Vertical Shaft Supports
Agitators, mixers, and vertical pump shafts. 511 bearings handle the weight of the shaft and impeller assembly plus hydraulic thrust — the classic vertical shaft application.
Steering Columns & Linkages
Automotive and industrial vehicle steering systems. Compact 511 bearings fit within the tight space envelope of steering column assemblies while providing smooth, low-friction axial rotation.
General Industrial Machinery
Conveyor pulley supports, packaging machine cam followers, and textile machinery tension control. The economical choice for light-to-moderate pure axial loads.
Instrumentation & Precision Devices
Optical equipment focus mechanisms, laboratory apparatus, and precision measurement instruments. P5/P4 grade 511 bearings provide smooth, precise axial motion with minimal torque variation.
Need 511 Series Extra Light Thrust Ball Bearings?
Tell us your bore size, precision grade, cage preference, and quantity. Our engineers respond within 24 hours.
