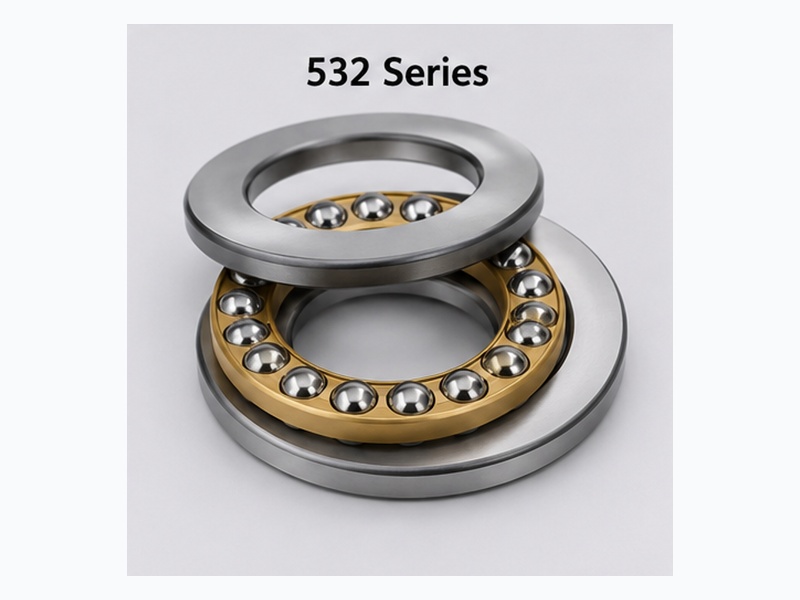

532 Series
Self-Aligning Thrust Ball Bearings
10–360mm Bore | Single Direction | Spherical Housing Washer | P5/P4/P0 Grade
The 532 series adds a spherical housing washer and aligning seat to the 512 cross-section — enabling the bearing to compensate for static angular misalignment between the shaft and housing. Ideal for applications where perfect perpendicularity between the shaft axis and housing support face cannot be guaranteed during manufacture or installation.
Self-Aligning Thrust Bearings for Imperfect Mounting Conditions
Luoyang Songju 532 series thrust ball bearings feature the same light cross-section as the 512 series, with the addition of a spherical housing washer and matching aligning seat. This self-aligning capability compensates for static angular misalignment of up to 2–3° between the shaft axis and the housing mounting face — preventing edge loading on the ball-cage assembly that would otherwise cause premature bearing failure.
The spherical aligning seat is a separate component, installed between the housing washer and the housing bore. The concave spherical surface of the seat mates with the convex spherical back face of the housing washer, creating a ball-and-socket joint that freely pivots to accommodate angular deviation. This eliminates the need for precision-machined perpendicular housing faces — reducing manufacturing cost in welded fabrications, cast housings, and field-installed equipment.
Available in bore sizes from 10mm to 360mm. The light cross-section provides good axial load capacity while the self-aligning feature protects against the most common cause of thrust bearing failure — misalignment-induced edge loading. For heavier load requirements with self-alignment, specify the 533 series.
Request Quote
532 Series Model Parameters
Complete standard model list. d = Bore, D = Outer diameter, T = Height, Ca = Dynamic axial load, C0a = Static axial load. Data per SKF/NTN/NSK catalogs.
| Model | d (mm) | D (mm) | T (mm) | Ca (kN) | C0a (kN) | Mass (kg) |
|---|---|---|---|---|---|---|
| 53200 | 10 | 26 | 11 | 12.7 | 17.1 | 0.032 |
| 53201 | 12 | 28 | 11 | 13.2 | 19.0 | 0.036 |
| 53202 | 15 | 32 | 12 | 16.6 | 24.8 | 0.048 |
| 53203 | 17 | 35 | 12 | 17.2 | 27.3 | 0.055 |
| 53204 | 20 | 40 | 14 | 22.8 | 37.7 | 0.085 |
| 53205 | 25 | 47 | 15 | 27.8 | 50.4 | 0.115 |
| 53206 | 30 | 52 | 16 | 29.3 | 58.2 | 0.143 |
| 53207 | 35 | 62 | 18 | 39.4 | 78.2 | 0.228 |
| 53208 | 40 | 68 | 19 | 47.3 | 98.2 | 0.288 |
| 53209 | 45 | 73 | 20 | 48.5 | 105.0 | 0.322 |
| 53210 | 50 | 78 | 22 | 52.5 | 118.0 | 0.388 |
| 53212 | 60 | 95 | 26 | 73.3 | 172.0 | 0.740 |
All models include spherical housing washer + aligning seat. Standard: GCr15 steel, pressed steel cage. For heavier loads with self-alignment: 533 series. For double-direction with alignment: 542 series. Contact engineering for complete catalog.
Why Choose Luoyang Songju 532 Series
Self-aligning capability compensates for shaft/housing misalignment — protects against the #1 cause of thrust bearing failure
2–3° Misalignment Compensation
The spherical housing washer and matching aligning seat form a ball-and-socket joint that accommodates static angular misalignment between shaft and housing. Prevents edge loading on the ball-cage assembly — the #1 cause of premature thrust bearing failure.
Simplified Installation
Eliminates the need for precision-machined perpendicular housing faces. The aligning seat absorbs angular deviation, enabling the use of as-welded or as-cast housing surfaces without post-machining. Reduces total manufactured cost of the surrounding assembly.
Edge Loading Protection
In a standard flat-washer thrust bearing, shaft/housing misalignment concentrates the axial load on one side of the ball complement — dramatically increasing contact stress and accelerating fatigue. The 532 spherical seat eliminates this failure mode entirely.
Thermal Distortion Tolerance
Welded fabrications and cast housings can distort during operation due to thermal gradients. The self-aligning feature actively compensates for this in-service distortion — maintaining uniform ball loading even as the housing geometry changes with temperature.
Same Load Ratings as 512
The 532 series shares the internal geometry and load ratings of the 512 series. You get the same proven load capacity plus self-alignment — no compromise between load capacity and misalignment protection.
SKF/NTN/NSK Interchangeable
Direct dimensional replacement for SKF 532, NTN 532, NSK 532, and FAG 532 series self-aligning thrust ball bearings. Includes aligning seat. Same dimensions, same self-aligning performance — competitive pricing.
Industries & Applications for 532 Series
Trusted across precision industries worldwide for reliable axial load support
Welded Fabrication Housings
Industrial fan and blower housings, conveyor pulley frames, and structural steel assemblies. The self-aligning seat compensates for the inherent geometric variability of welded fabrications — eliminating the need for post-weld machining of bearing mounting faces.
Field-Installed Equipment
Mining conveyors, agricultural machinery, and construction equipment assembled on-site. 532 bearings compensate for the alignment tolerances typical of field installation conditions — where precision measurement equipment may not be available.
Gearbox Vertical Shafts
Vertical gearbox output shafts where the housing bore and shaft centerline may not be perfectly aligned. The 532 series ensures uniform thrust load distribution despite housing manufacturing tolerances.
Marine Steering Gear
Ship rudder stocks and steering gear thrust pads. The aligning seat accommodates hull deflection under seaway loads — maintaining uniform thrust bearing loading as the vessel structure flexes in heavy seas.
Need 532 Series Self-Aligning Thrust Ball Bearings?
Tell us your bore size, precision grade, and quantity. Include aligning seat with every bearing. Our engineers respond within 24 hours.
