Internal Grinding Spindle
100MD60Y7.5
High-power internal grinding spindle. 60,000 r/min with 7.5 kW output. High-frequency asynchronous motor, water-cooled, ideal for medium to large bore grinding.

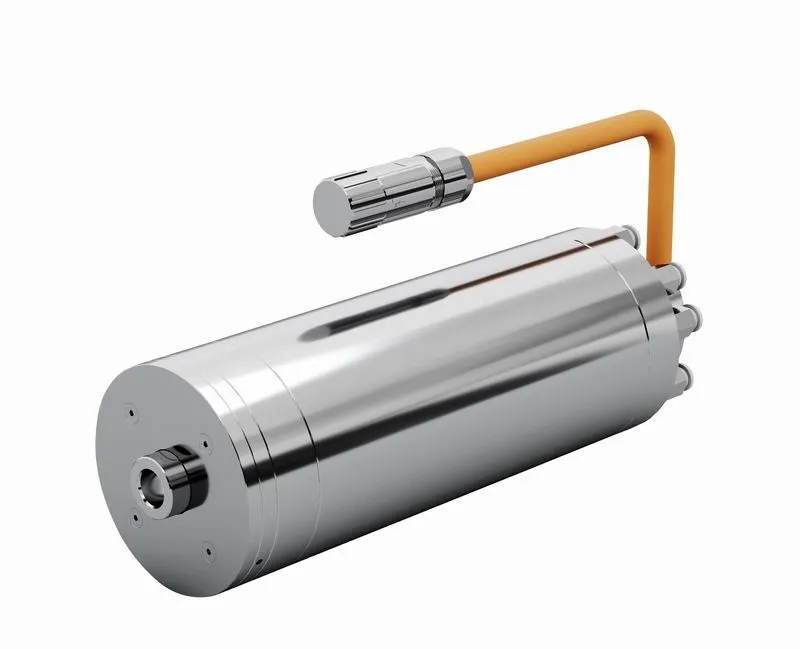

100MD60Y7.5 Internal Grinding Spindle
The 100MD60Y7.5 is a powerful internal grinding spindle designed for medium to large bore grinding applications requiring both high speed and substantial power. Operating at speeds up to 60,000 r/min with a robust 7.5 kW high-frequency asynchronous motor, this spindle delivers the wheel surface speeds and material removal capability needed for efficient internal grinding of bearing housings, hydraulic cylinders, gear bores, and other precision internal features.
P4 precision angular contact ball bearings provide the rigidity and accuracy necessary for consistent sub-micron runout at the grinding pin interface. An efficient water-jacket cooling system manages the thermal loads generated during sustained operation, maintaining geometric stability and preventing thermal drift. The 100mm housing diameter provides good stiffness while allowing access to bores typically 20mm and larger. Weighing approximately 22 kg, the 100MD60Y7.5 is designed for integration into CNC internal grinding machines, universal grinding machines with internal grinding attachments, and specialized bore grinding equipment.
Download Drawing Get a QuoteDetailed Parameters
| Speed (r/min) | 60000 (max) |
| Speed Range (r/min) | 15000 - 60000 |
| Power (kW) | 7.5 |
| Torque (Nm) | 1.2 |
| Voltage (V) | 350 |
| Current (A) | 20 |
| Frequency (Hz) | 1000 (max) |
| Motor Type | High-Frequency Asynchronous Induction Motor |
| Bearing Type | P4 Precision Angular Contact Ball Bearings |
| Bearing Arrangement | Back-to-Back (DB) with spring preload |
| Bearing Lubrication | Oil-air micro-lubrication |
| Runout Accuracy | ≤ 0.001mm at spindle nose |
| Cooling Method | Water-jacket cooling (min 4 L/min) |
| Housing Diameter | 100mm |
| Housing Length | ~380mm |
| Spindle Weight | ~22 kg |
| Collet/Arbor Interface | Custom (specify at order, common 6-20mm shank) |
| Sensor Integration | 2x PT100 temperature sensors |
| Protection Class | IP54 |
| Balancing Grade | G0.4 per ISO 1940-1 |
Available Options & Customizations
- Ceramic hybrid bearings for extended high-speed life
- Higher speed variant up to 75,000 r/min
- Custom grinding pin collet sizes (specify shank diameter)
- Acoustic emission sensor for gap elimination and collision detection
- Automatic wheel change interface
- Integrated coolant-through-spindle capability
High-Power Internal Grinding Performance
The 100MD60Y7.5 combines 7.5 kW of power with 60,000 rpm speed capability for demanding bore grinding applications.
7.5 kW Power
Higher power rating enables faster material removal in internal grinding operations.
60,000 rpm Speed
High spindle speeds for efficient grinding with CBN and diamond wheels.
High-Frequency Motor
Optimized asynchronous motor design for smooth power delivery across the speed range.
Water Cooling
Efficient thermal management for dimensional stability during production.
100mm Housing
Stiff, compact design provides good bore access for medium to large diameters.
Oil-Air Lubrication
Precision bearing lubrication for sustained high-speed reliability.
Sub-Micron Accuracy
Runout within 0.001mm for high-precision bore grinding.
PT100 Temperature Monitoring
Real-time thermal condition tracking for process control.
