Internal Grinding Spindle
100MD90Y2.5
Ultra-high-speed internal grinding spindle with ceramic hybrid bearings. 90,000 r/min, 2.5 kW power, water plus oil-air cooling for precision bore and internal profile grinding.

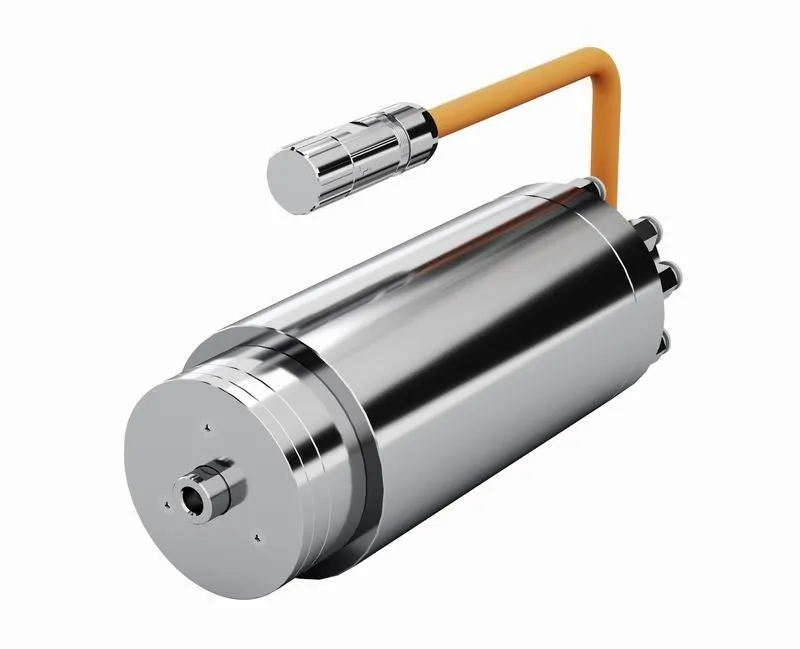

100MD90Y2.5 Internal Grinding Spindle
The 100MD90Y2.5 is an ultra-high-speed internal grinding spindle designed for precision bore grinding, internal profile grinding, and small-diameter internal machining operations. Operating at speeds up to 90,000 r/min with 2.5 kW of power from a high-frequency asynchronous motor, this spindle achieves the elevated wheel surface speeds necessary for effective grinding with small-diameter mounted wheels and points.
Silicon nitride (Si3N4) ceramic hybrid ball bearings in P4 precision grade minimize centrifugal loads and heat generation at extreme rotational speeds, significantly extending bearing service life compared to all-steel bearing configurations. An advanced dual cooling system combines a water jacket for the motor stator with oil-air micro-lubrication for the bearings, ensuring stable thermal conditions during continuous high-speed operation. The compact 100mm housing diameter allows access to small bores and internal features. With runout accuracy within 1 micron and weighing only 18 kg, the 100MD90Y2.5 is ideal for high-precision internal grinding machines producing bearing rings, fuel injection components, hydraulic valve bodies, and other small precision parts.
Download Drawing Get a QuoteDetailed Parameters
| Speed (r/min) | 90000 (max) |
| Speed Range (r/min) | 30000 - 90000 |
| Power (kW) | 2.5 |
| Torque (Nm) | 0.26 |
| Voltage (V) | 350 |
| Current (A) | 8.5 |
| Frequency (Hz) | 1500 (max) |
| Motor Type | High-Frequency Asynchronous Induction Motor |
| Bearing Type | P4 Ceramic Hybrid Angular Contact Ball Bearings (Si3N4 balls, steel races) |
| Bearing Arrangement | Tandem (DT) with spring preload |
| Bearing Lubrication | Oil-air micro-lubrication (permanent system) |
| Runout Accuracy | ≤ 0.001mm at spindle nose |
| Cooling Method | Water-jacket (motor) + oil-air (bearings) dual cooling |
| Housing Diameter | 100mm |
| Housing Length | ~310mm |
| Spindle Weight | ~18 kg |
| Collet/Arbor Interface | Custom (specify grinding pin shank diameter at order) |
| Sensor Integration | 2x PT100 temperature sensors |
| Protection Class | IP54 |
| Balancing Grade | G0.4 per ISO 1940-1 |
Available Options & Customizations
- Higher speed variants up to 120,000 r/min
- Grease lubrication for reduced system complexity (lower max speed)
- Custom grinding pin collet sizes
- Acoustic emission sensor integration
- Automatic tool change interface
- Enhanced IP65 protection
Precision Engineering for Micro Bore Grinding
The 100MD90Y2.5 combines ultra-high-speed capability with ceramic hybrid bearing technology to deliver exceptional internal grinding performance.
90,000 rpm Maximum Speed
Extreme rotational speeds for efficient grinding with small-diameter wheels.
Ceramic Hybrid Bearings
Si3N4 ceramic balls reduce mass and centrifugal force, extending bearing life at ultra-high speeds.
Dual Cooling System
Water jacket for motor plus oil-air bearing lubrication for optimal thermal management.
High-Frequency Motor
Specialized high-frequency asynchronous motor delivers smooth power across the speed range.
Compact 100mm Design
Small housing diameter provides access to small bores and tight internal geometries.
Oil-Air Lubrication
Precision micro-lubrication system ensures consistent bearing condition at 90,000 rpm.
Sub-Micron Accuracy
0.001mm runout for high-precision internal grinding applications.
Lightweight Construction
At only 18 kg, this spindle enables fast machine axis movements and reduced inertia.
Industries & Use Cases
- Internal bore grinding
- Bearing ring grinding (inner rings)
- Fuel injection nozzle grinding
- Hydraulic valve body grinding
- Small-diameter internal profile grinding
- Precision mold cavity grinding
Request a Quote for 100MD90Y2.5
